SDR0703-470KL

SMD功率电感 SMD Power Inductors

**Features:

**

* Low Height of Only 2.7 mm

* High ISAT of 3.2 Amps**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

立创商城:
47uH ±10% 400mA 720mΩ

得捷:
FIXED IND 47UH 400MA 720MOHM SMD

艾睿:

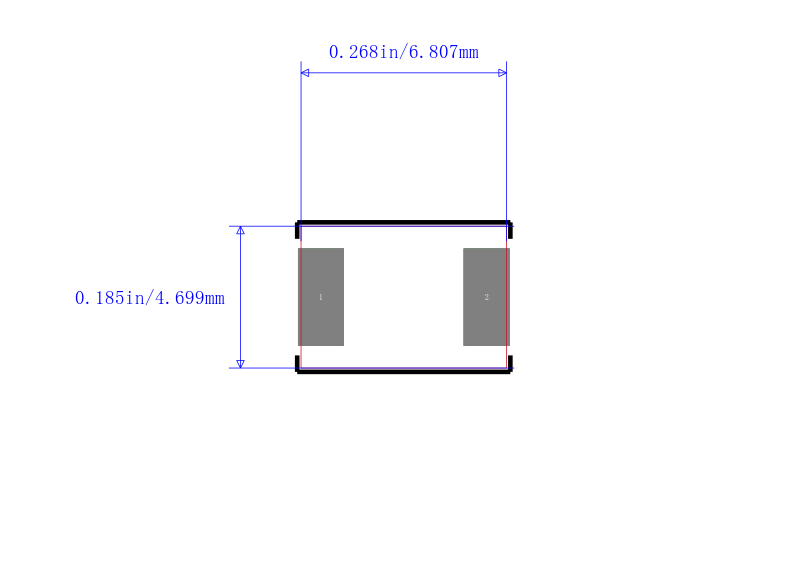

This power SDR0703-470KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 47u H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 720m Ohm. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. It has a tolerance of 10%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 15M Hz. This device is made with wirewound technology.

Allied Electronics:
Inductor; Power Wirewound; 47uH; 100KHz; 10%; SMD

安富利:
Ind Power Wirewound 47uH 10% 100KHz 20Q-Factor Ferrite 400mA T/R

Verical:
Inductor Power Unshielded Wirewound 47uH 10% 100KHz 20Q-Factor Ferrite 0.4A 0.72Ohm DCR T/R

Newark:
# BOURNS  SDR0703-470KL  Surface Mount Power Inductor, SDR0703 Series, 47 µH, 400 mA, 640 mA, Unshielded, 0.72 ohm

MASTER:
Inductor Power Wirewound 47uH 10% 100KHz 20Q-Factor Ferrite 400mA 720mOhm DCR T/R

Online Components:
Inductor Power Wirewound 47uH 10% 100KHz 20Q-Factor Ferrite 400mA 720mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 47uH 10% 100KHz 20Q-Factor Ferrite 400mA 720mOhm DCR T/R
