SRR1210A-121M

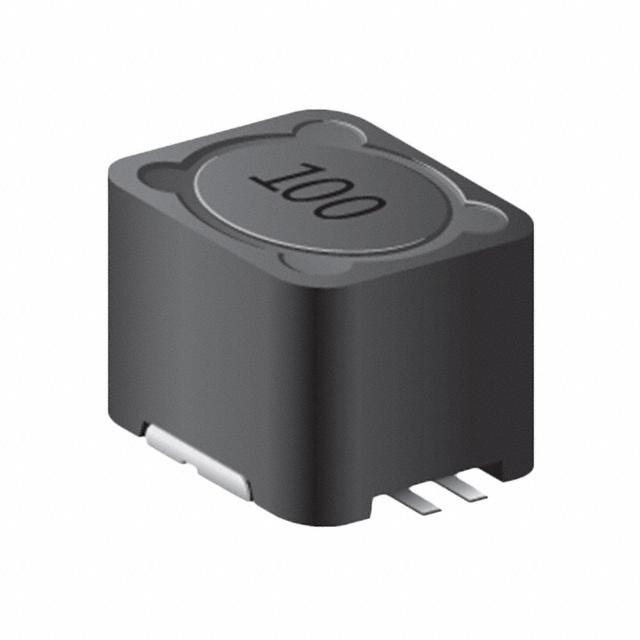

BOURNS  SRR1210A-121M  表面贴装功率电感器, AEC-Q200 SRR1210A系列, 120 µH, ± 20%, 屏蔽, 0.17 ohm, 2.3 A

**Features:

**

* Shielded Construction

* Inductance Range: 1 to 1000 μH

* Heating Current Up to 11 A

* Dimensions: 12 × 12 × 10 mm

* AEC-Q200 Qualified**

Applications:

**

* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting

* DC/DC Converters

* Power Supplies

立创商城:
120uH ±20% 2.3A 170mΩ

得捷:
FIXED IND 120UH 2.3A 170MOHM SMD

贸泽:
固定电感器 120uH 20% SMD 1210 AEC-Q200

e络盟:
功率电感SMD, 120 µH, 2.3 A, 屏蔽, 1.9 A, SRR1210A 系列, 12mm x 12mm x 10mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR1210A-121M surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 2.3Typ A with a maximum resistance of 170m Ohm. It has an inductance of 120u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.6MTyp Hz. This device utilizes wirewound technology. This product is 12.5 mm long, 10 mm tall and 12.5 mm deep. It has a tolerance of 20%.

Allied Electronics:
SMD Shieled Power Inductor; 120uH; 20%; SRR1210A

安富利:
Ind Power Shielded 120uH 20% 796KHz 13Q-Factor Ferrite 2.3A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 120uH 20% 1KHz 13Q-Factor Ferrite 2.3A 170mOhm DCR Automotive T/R

Newark:
# BOURNS  SRR1210A-121M  Surface Mount Power Inductor, AEC-Q200 SRR1210A Series, 120 H, 20%, Shielded, 0.17 ohm, 2.3 A
