S25FL204K0TMFI040

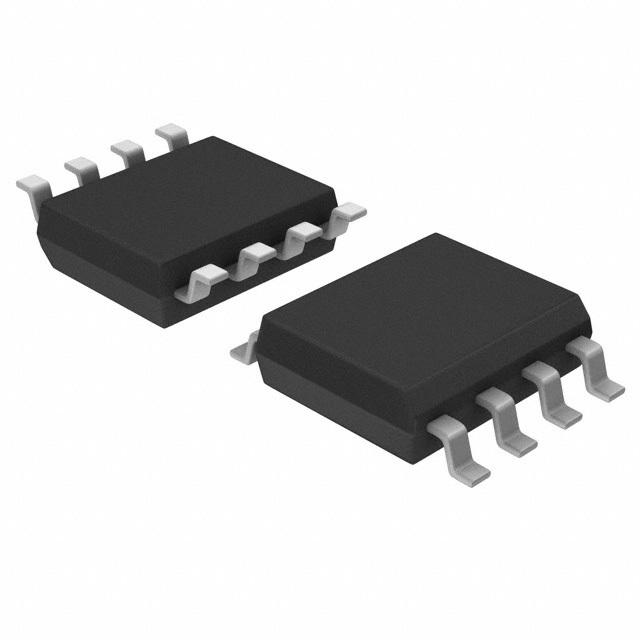

SPANSION  S25FL204K0TMFI040  芯片, 闪存, 或非, 4MB, SOIC-8

General Description

The S25FL204K 4-Mbit, 512-kbyte Serial Flash memory, with advanced write protection mechanisms. TheS25FL204K supports the standard Serial Peripheral Interface SPI, and a high performance Dual output using SPI pins: Serial Clock, Chip Select, Serial SI/IO0, SO, WP# and HOLD#. SPI clock frequencies of up to 85 MHz are supported along with a clock rate of 85 MHz for Dual Output Read.

The S25FL204K array is organized into 2048 programmable pages of 256 bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 4 kB Sector Erase, groups of 256 64 kB Block Erase or the entire chip Chip Erase. The S25FL204K has128 erasable sectors and 8 erasable blocks. The small 4 kB sectors allow for greater flexibility in applications that require data and parameter storage.

A Hold pin, Write Protect Pin and programmable write protection provide further control flexibility. Additionally, the S25FL204K device supports JEDEC standard manufacturer and device identification.

Distinctive Features

■ Single power supply operation

   – Full voltage range: 2.7 to 3.6V

■ 4-Mbit Serial Flash

   – 4-Mbit/512 kbyte/2048 pages

   – 256 bytes per programmable page

   – Uniform 4-kbyte Sectors/64-kbyte Blocks

■ Standard and Dual

   – Standard SPI: SCK, CS#, SI, SO, WP#, HOLD#

   – Dual SPI: SCK, CS#, SI/IO0, SO, WP#, HOLD#

   – Fast Read Dual Output instruction

   – Auto-increment Read capability

■ High Performance

   – FAST READ Serial: 85 MHz clock rate

   – DUAL OUTPUT READ: 85 MHz clock rate

■ Low Power Consumption

   – 12 mA typical active current

   – 15 µA typical standby current

■ Flexible Architecture with 4 kB Sectors

   – Sector Erase 4 kB

   – Block Erase 64 kB

   – Page Program up to 256 bytes

   – 100k erase/program cycles typical

   – 20-year data retention typical

■ Software and Hardware Write Protection

   – Write Protect all or portion of memory via software

   – Enable/Disable protection with WP# pin

■ High Performance Program/Erase Speed

   – Page program time: 1.5 ms typical

   – Sector erase time 4 kB: 50 ms typical

   – Block erase time 64 kB: 500 ms typical

   – Chip erase time: 3.5 seconds typical

■ Package Options

   – 8-pin SOIC 150/208-mil

   – All Pb-free packages are RoHS compliant
