SRN6045-4R7Y

BOURNS  SRN6045-4R7Y  表面贴装功率电感器, SRN6045系列, 4.7 µH, ± 20%, 屏蔽, 0.0376 ohm, 3 A

SRN6045 系列半磁性屏蔽线绕扼流圈

Bourns SRN6045 系列 SMD 半屏蔽功率器，电感范围为 1-220uH，额定电流高达 8A。适用于汽车行业，因为这些电感器符合 AEC-Q200 标准。

得捷:
FIXED IND 4.7UH 3A 37.6 MOHM SMD

立创商城:
4.7uH ±30% 3A 376mΩ

欧时:
### SRN6045 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN6045 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4.5mm Inductance range from 1 to 100μH Rated current of up to 4.2A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

艾睿:

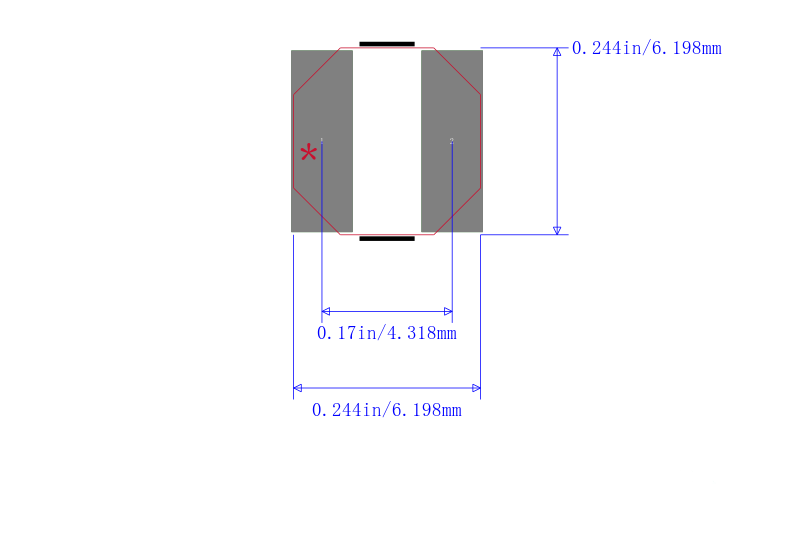

This power SRN6045-4R7Y surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 4.7u H. This product is 6.2 mm long, 4.5 mm tall and 6.2 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 22MTyp Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 3 A with a maximum resistance of 37.6m Ohm.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 4.7 uH; Tol 30%; Cur-Rtg 3 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 4.7uH 30% 100KHz Ferrite 3A T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 4.7uH 30% 100KHz 15Q-Factor Ferrite 3A 37.6mOhm DCR T/R

Verical:
Inductor Power Semi-Shielded Wirewound 4.7uH 30% 100KHz 15Q-Factor Ferrite 3A 0.0376Ohm DCR T/R

Newark:
# BOURNS  SRN6045-4R7Y  Surface Mount Power Inductor, SRN6045 Series, 4.7 µH, 3 A, 4 A, Shielded, 0.0376 ohm

MASTER:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 4.7 µH - 100KHz - 3A - 37.6m Ohm.

Online Components:
Inductor Power Semi-Shielded Wirewound 4.7uH 30% 100KHz 15Q-Factor Ferrite 3A 37.6mOhm DCR T/R

Electro Sonic:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 4.7 µH - 100KHz - 3A - ...
