SRR0604-330KL
数据手册.pdfBOURNS SRR0604-330KL 表面贴装功率电感器, SRR0604系列, 33 µH, ± 10%, 屏蔽, 0.25 ohm, 700 mA
SRR0604 系列磁性屏蔽线绕扼流圈
提供 E6 系列
低装置高度为 4.8 mm
高电流
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 33UH 700MA 250MOHM SMD
欧时:
Bourns SRR0604 系列 屏蔽 铁氧体 DR 和 RI芯材 33 μH 绕线贴片电感器 SRR0604-330KL, 950mA Idc Q:16
立创商城:
33uH ±10% 700mA 250mΩ
贸泽:
Fixed Inductors 33uH 10% SMD 0604
e络盟:
功率电感SMD, 33 µH, 700 mA, 屏蔽, 950 mA, SRR0604系列, 6.5mm x 6.5mm x 4.8mm
艾睿:

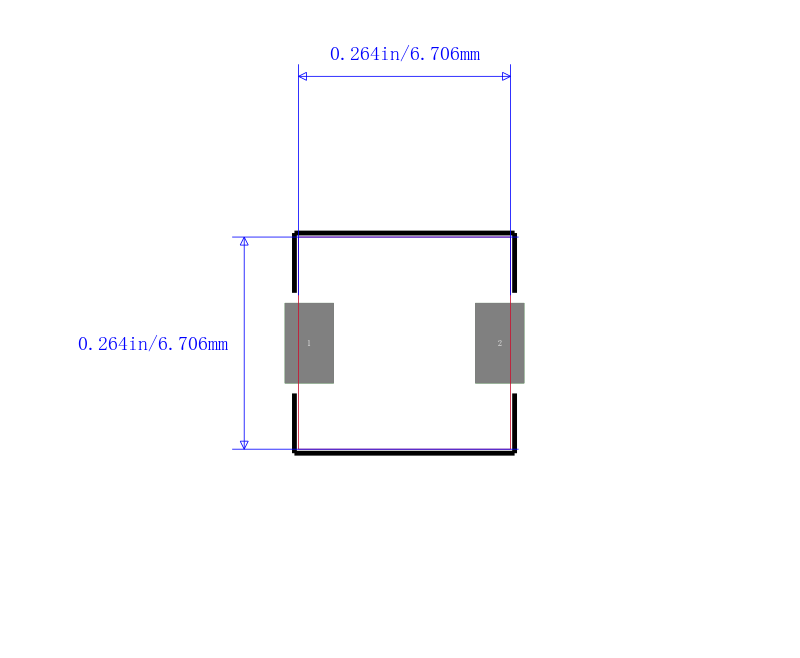

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR0604-330KL surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 6.7 mm long, 4.8 mm tall and 6.7 mm deep. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 250m Ohm. It has a tolerance of 10%. This device utilizes wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 21M Hz. It has an inductance of 33u H.
安富利:
Ind Power Shielded Wirewound 33uH 10% 1KHz 16Q-Factor Ferrite 700mA T/R
TME:
dławik bourns
Verical:
Inductor Power Shielded Wirewound 33uH 10% 1KHz 16Q-Factor Ferrite 700mA 250mOhm DCR T/R
Newark:
# BOURNS SRR0604-330KL Surface Mount Power Inductor, SRR0604 Series, 33 H, 10%, Shielded, 0.25 ohm, 700 mA
Online Components:
Inductor Power Shielded Wirewound 33uH 10% 1KHz 16Q-Factor Ferrite 700mA 250mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 33uH 10% 1KHz 16Q-Factor Ferrite 700mA 250mOhm DCR T/R
Win Source:
FIXED IND 33UH 700MA 250MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 700 mA 250mOhm Max Nonstandard, Corner Terminals
