RSF107Y100GV

CYNERGY3  RSF107Y100GV.  Vert, PVDF, N/O, 25VA, 1 metre PTFE 16/0.2 wires, Viton seal 98Y7607 新

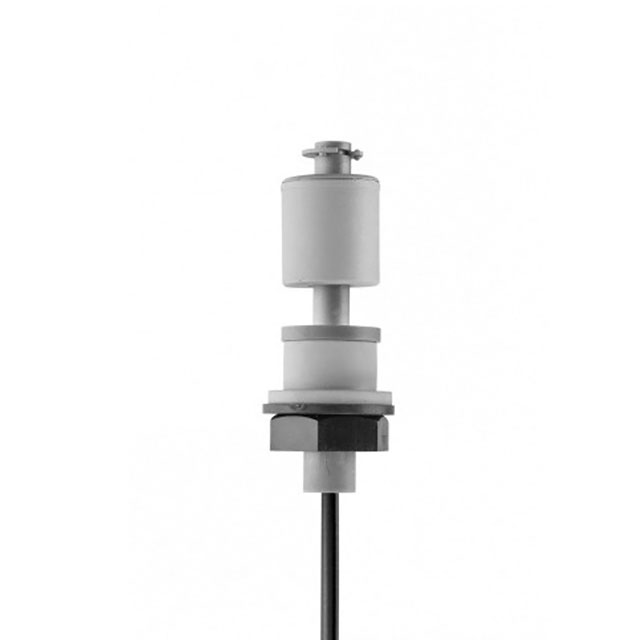

The from Cynergy3 is an external mount miniature vertical switch. It is a compact vertically mounted design with a single switch point. Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting. The switch action may be reversed by removing the float, inverting it, then refitting to the stem.

.

External mount via compression seal

.

Compact design with small diameter float

.

Green colour PVDF material, UL approved

.

Maximum power is 25VA

.

100cm PTFE 2 core 7/0.2 lead-outs

.

Viton gasket

.

Contact form is N/O N/C

.

Switching voltage is 240VAC, 120VDC and switching current is 0.6A

.

Temperature range from -10°C to +105°C
