REF01CP+

电压参考系列-固定, 10V参考, ± 20ppm/°C, DIP-8

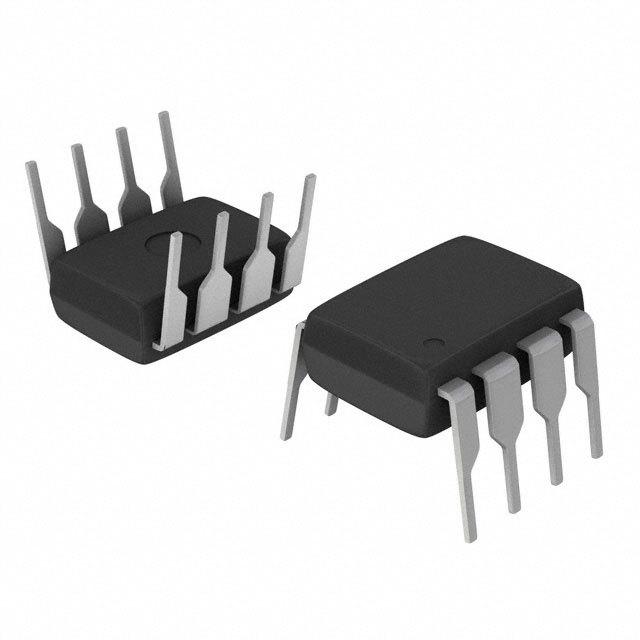

The is a precision voltage reference in 8 pin DIP package. This industry standard voltage reference has single supply operation over an input voltage range of 13V to 33V. The stable 10V output of this device can be adjusted over a ±6% range with minimal effect on temperature stability. The REF01C offers low current drain of 1mA. This device is used in analogue to digital converters, digital to analogue converters, digital voltmeters, voltage regulators and threshold detectors.

.

Output voltage temperature coefficient of 20ppm/°C

.

Operating temperature range from 0°C to 70°C

.

Short circuit protected

.

Output voltage noise of 25µVP-P 0.1Hz to 10Hz

.

Quiescent supply current of 1mA

.

Load current of 21mA and sink current of 0.5mA

.

Initial error of ±100mV
