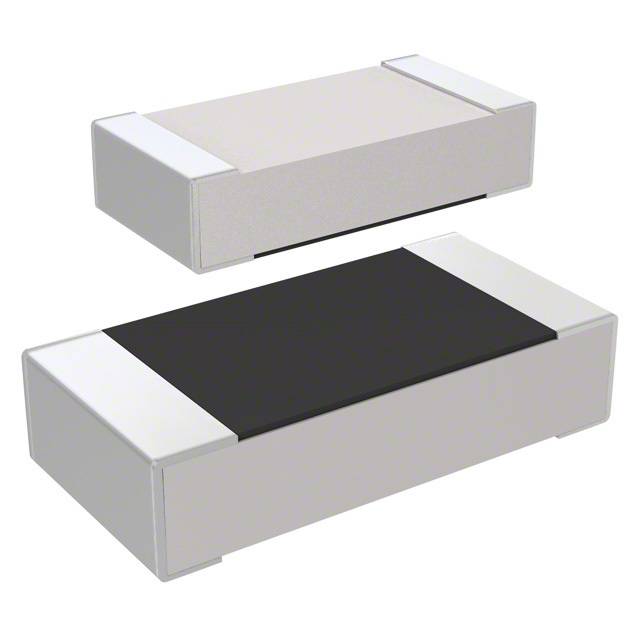

RC3216J430CS

RC3216J430CS

数据手册.pdf
Samsung(三星) 电子元器件分类

1206 43Ω ±5%

43 ±5% 0.25W,1/4W 芯片 1206(3216 公制) 防潮 厚膜


得捷:
RES SMD 43 OHM 5% 1/4W 1206


艾睿:
The RC3216J430CS fixed single surface-mount resistor from Samsung Electro-Mechanics makes it easy to add resistors to your circuit board. This product has a resistance value of 43 Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. It has a tolerance of 5%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C.


RC3216J430CS中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±5 %

额定功率 0.25 W

产品系列 RC

电阻 43 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

RC3216J430CS引脚图与封装图
暂无图片
在线购买RC3216J430CS
型号 制造商 描述 购买
RC3216J430CS Samsung 三星 1206 43Ω ±5% 搜索库存
替代型号RC3216J430CS
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: RC3216J430CS

品牌: Samsung 三星

封装: 1206 43ohms 5per 250mW 200V

当前型号

1206 43Ω ±5%

当前型号

型号: RC3216F430CS

品牌: 三星

封装: 1206 43ohms 250mW 1per

类似代替

1206 43Ω ±1%

RC3216J430CS和RC3216F430CS的区别
