RC1206FR-07590RL

RC1206FR-07590RL

数据手册.pdf
Yageo(国巨) 被动器件

SMD电阻器/芯片电阻器

SMD器/芯片电阻器


得捷:
RES 590 OHM 1% 1/4W 1206


立创商城:
590Ω ±1% 250mW


贸泽:
Thick Film Resistors - SMD 590 OHM 1%


艾睿:
This is a RC1206FR-07590RL fixed single surface-mount resistor from Yageo. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 590 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 1%. This device is made with thick film technology. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C.


安富利:
Res Thick Film 1206 590 Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper T/R


Verical:
Res Thick Film 1206 590 Ohm 1% 0.25W1/4W ±100ppm/C Epoxy SMD T/R


儒卓力:
**RC1206 590R 1% 0,25W TK100 **


RC1206FR-07590RL中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±1 %

额定功率 0.25 W

产品系列 RC

电阻 590 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

RC1206FR-07590RL引脚图与封装图

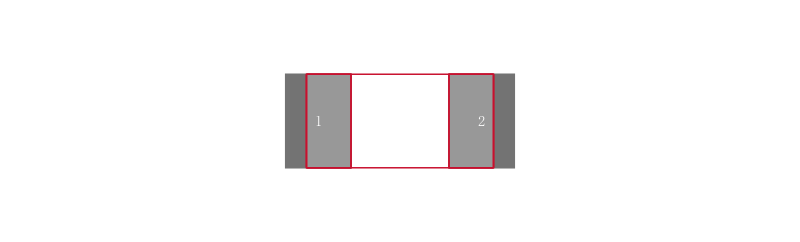

RC1206FR-07590RL引脚图

RC1206FR-07590RL引脚图

RC1206FR-07590RL封装图

RC1206FR-07590RL封装图

RC1206FR-07590RL封装焊盘图

RC1206FR-07590RL封装焊盘图

在线购买RC1206FR-07590RL
型号 制造商 描述 购买
RC1206FR-07590RL Yageo 国巨 SMD电阻器/芯片电阻器 搜索库存
替代型号RC1206FR-07590RL
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: RC1206FR-07590RL

品牌: Yageo 国巨

封装: 1206 590ohms 250mW 1per

当前型号

SMD电阻器/芯片电阻器

当前型号

型号: 9C12063A5900FKHFT

品牌: 国巨

封装: 1206 590Ω ±1% 250mW 200V

完全替代

RES SMD 590Ω 1% 0.25W1/4W 1206

RC1206FR-07590RL和9C12063A5900FKHFT的区别

型号: RC1206FR-07590R

品牌: 国巨

封装:

完全替代

Res Smt 590r 1% 1206 t/r Pick#60567

RC1206FR-07590RL和RC1206FR-07590R的区别

型号: CRCW1206590RFKEA

品牌: 威世

封装: 1206 590Ω 250mW ±1%

功能相似

1206 590Ω ±1% 0.25W1/4W ±100ppm/℃

RC1206FR-07590RL和CRCW1206590RFKEA的区别
