RC0603JR-0722KL
数据手册.pdfYAGEO RC0603JR-0722KL 厚膜电阻, 22KΩ, 100mW, 5%
SMD器/芯片电阻器
欧时:
Resistor Thick Film 0603 22K
得捷:
RES 22K OHM 5% 1/10W 0603
立创商城:
22kΩ ±5% 100mW
e络盟:
SMD片式电阻, 厚膜, 0603 [1608公制], 22 kohm, RC系列, 75 V, 厚膜, 100 mW
艾睿:

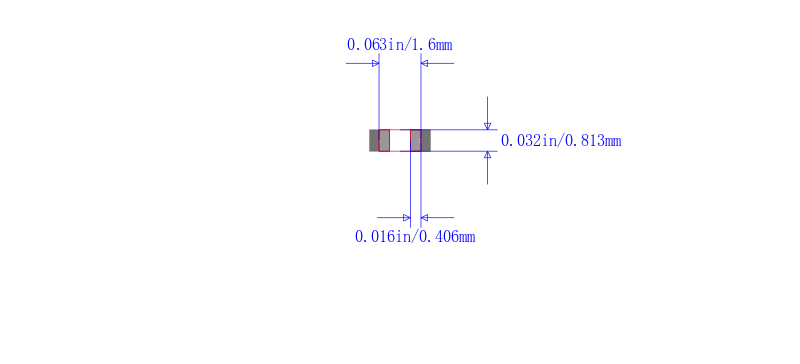

The RC0603JR-0722KL fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 22K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device is made with thick film technology.
Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 22K Ohm 5% 0.1W1/10W 100ppm/ C Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 0603; 22kΩ; 0.1W; ±5%; -55÷155°C
Verical:
Res Thick Film 0603 22K Ohm 5% 0.1W1/10W ±100ppm/C Molded SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC0603JR-0722KL Surface Mount Thick Film Resistor, RC Series, 22 kohm, 100 mW, - 5%, 50 V, 0603 [1608 Metric]
儒卓力:
**RC0603 22K 5% 0,1W TK100 **
