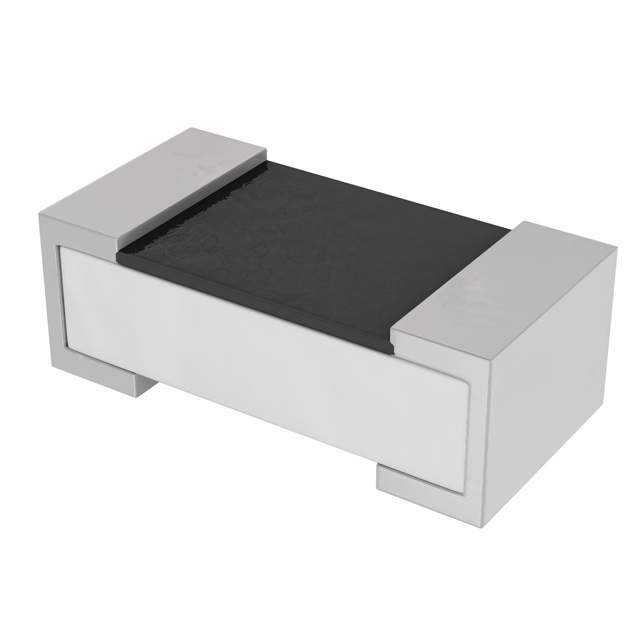

RC0402FR-072K26L

RC0402FR-072K26L

数据手册.pdf
Yageo(国巨) 被动器件

RC 系列 0402 62.5 mW 2.26K ohm 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻

SMD器/芯片电阻器


得捷:
RES 2.26K OHM 1% 1/16W 0402


立创商城:
2.26kΩ ±1% 62.5mW


艾睿:
This is a RC0402FR-072K26L fixed single surface-mount resistor from Yageo. This product has a resistance value of 2.26K Ohm. This dependable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This device is made with thick film technology.


安富利:
Res Thick Film 0402 2.26K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R


Verical:
Res Thick Film 0402 2.26K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy Pad SMD T/R


儒卓力:
**RC0402 2,26K 1% 0,063W TK100 **


RC0402FR-072K26L中文资料参数规格
技术参数

额定电压DC 50.0 V

容差 ±1 %

额定功率 0.063 W

产品系列 RC

电阻 2.26 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.35 mm

封装公制 1005

封装 0402

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

符合标准

RoHS标准

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

RC0402FR-072K26L引脚图与封装图
暂无图片
在线购买RC0402FR-072K26L
型号 制造商 描述 购买
RC0402FR-072K26L Yageo 国巨 RC 系列 0402 62.5 mW 2.26K ohm 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻 搜索库存
