PML18EZPJV2L0

PML18EZPJV2L0

数据手册.pdf
ROHM Semiconductor 罗姆半导体 被动器件

电流感应电阻器, 表面安装, 0.002 ohm, PML Series, 1206宽式, 1 W, ± 5%, 金属条

Ultra-low Ohmic Resistors for CurrentDetectionWide terminal type

Features

1 Ultra-low resistance range

2 Wide terminal configuration for high joint reliability.

3 Unique trimless structure utilized for improved current detection accuracy.

4 ISO9001- / ISO/TS 16949- approved


得捷:
RES 0.002 OHM 1W 1206 WIDE


立创商城:
2mΩ ±5% 1W


e络盟:
电流感应电阻器, 表面安装, 0.002 ohm, PML Series, 1206宽式, 1 W, ± 5%, 金属条


艾睿:
Res 0612 0.002 Ohm 5% 1W ±150ppm/°C Wide Terminal SMD Automotive T/R


安富利:
RES 1206 0.002 OHM 1W 5% 150PPM/C SMD


Chip1Stop:
Ultra low ohmic Metal plate / High power type Shunt


Verical:
Res 0612 0.002 Ohm 5% 1W ±150ppm/C Wide Terminal SMD Automotive T/R


PML18EZPJV2L0中文资料参数规格
技术参数

额定功率 1 W

产品系列 PML

电阻 0.002 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 0612

外形尺寸

长度 3.2 mm

宽度 1.6 mm

封装公制 3216

封装 0612

物理参数

温度系数 ±150 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

PML18EZPJV2L0引脚图与封装图

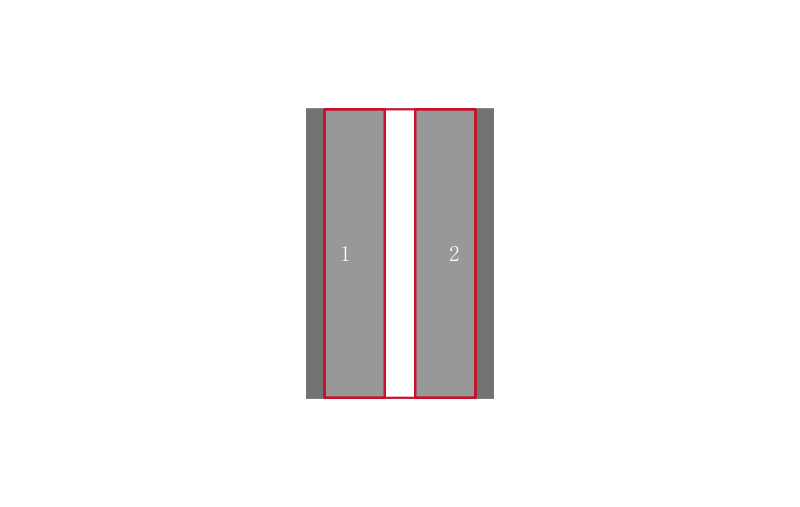

PML18EZPJV2L0引脚图

PML18EZPJV2L0引脚图

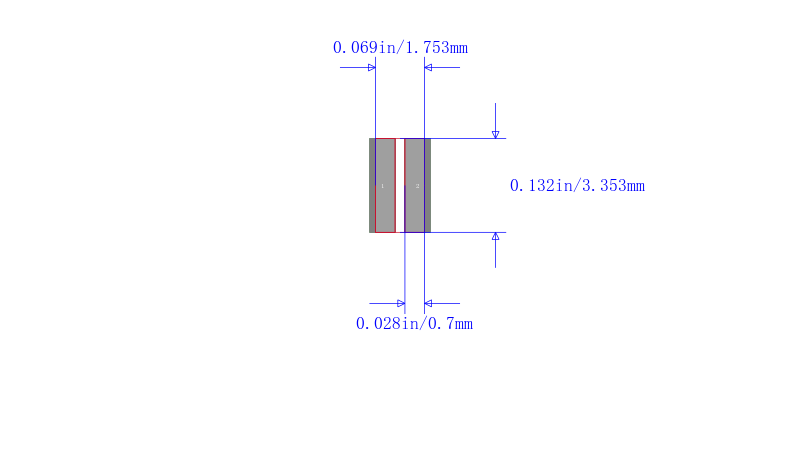

PML18EZPJV2L0封装图

PML18EZPJV2L0封装图

PML18EZPJV2L0封装焊盘图

PML18EZPJV2L0封装焊盘图
