PS2501-1X

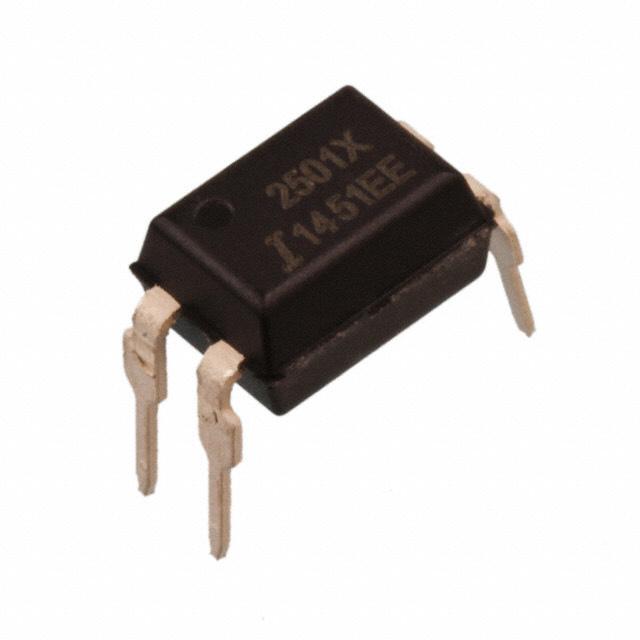

数据手册.pdfTransistor Output Optocoupler, 1Element, 5300V Isolation, ROHS COMPLIANT, PLASTIC, DIP-4
DESCRIPTION
The PS2501-1,PS2501-2,PS2501-4 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages.
FEATURES
l Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
l High Current Transfer Ratio 80% min
l High Isolation Voltage 5.3kVRMS ,7.5kVPK
l High BVCEO 80Vmin
l All electrical parameters 100% tested
l Custom electrical selections available
APPLICATIONS
l Computer terminals
l Industrial systems controllers
l Measuring instruments
l Signal transmission between systems of different potentials and impedances
