PLG0E392MDO1

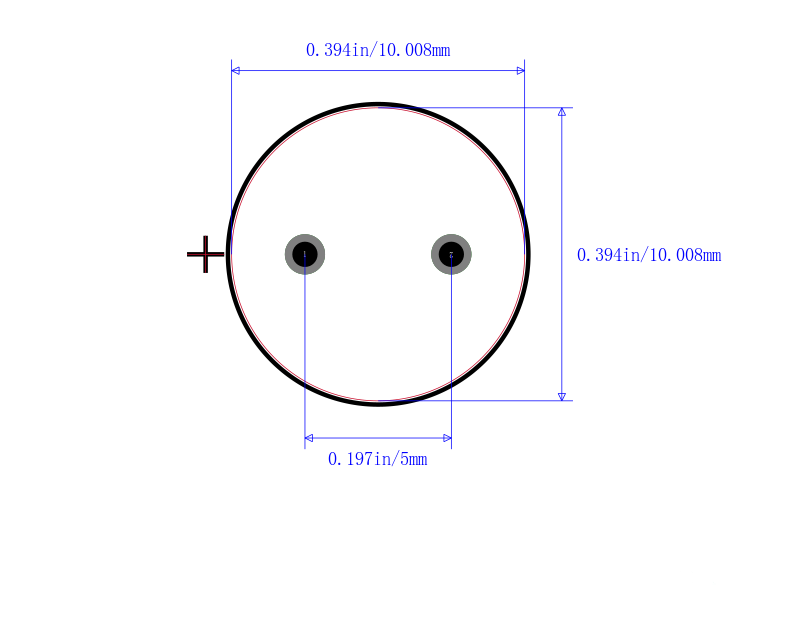

Cap Aluminum Polymer 3900uF 2.5VDC 20% 10 X 13mm Radial 5mm 0.008Ω 7000mA 2000H 105℃ Automotive Bulk

3900 µF 2.5 V 铝聚合物器 径向，Can 8 毫欧 105°C 时为 2000 小时

立创商城:
3900uF ±20% 2.5V

贸泽:
Aluminum Organic Polymer Capacitors 3900uF 2.5 Volts 20% Radial Leaded Low

艾睿:
This PLG0E392MDO1 conductive polymer aluminum solid capacitor from Nichicon is able to support a change in the load in an integrated circuit. It can withstand a voltage of 2.5 VDC. Users like its long lead wire form. This part has a lead diameter of 0.6 mm. This product is 13 mm tall with a diameter of 10 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. The PLG0E392MDO1 conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This product&s;s terminal pitch is 5 mm. Its leakage current is 1950@2Min μA.

Chip1Stop:
Cap Aluminum 3900uF 2.5V 20% 10 X 13mm Radial 5mm 0.008 Ohm 7000mA 2000h 105 C Bulk
