PALC22V10D-15JC

闪存可擦除，可重复编程的CMOS PAL®设备 Flash Erasable, Reprogrammable CMOS PAL㈢ Device

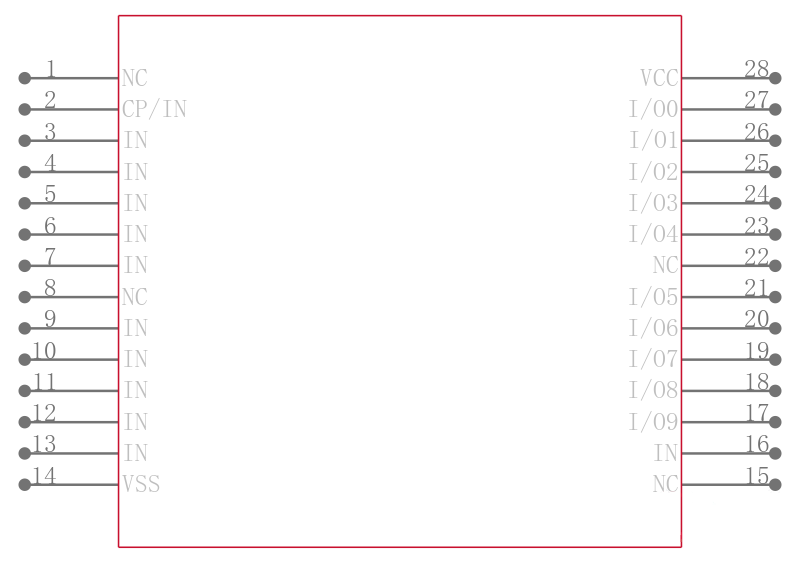

Functional Description

The Cypress PALC22V10D is a CMOS Flash Erasable second-generation programmable array logic device. It is implemented with the familiar sum-of-products AND-OR logic structure and the programmable macrocell.

Features

• Advanced second-generation PAL architecture

• Low power

— 90 mA max. commercial 10 ns

— 130 mA max. commercial 7.5 ns

• CMOS Flash EPROM technology for electrical erasability and reprogrammability

• Variable product terms

— 2 x8 through 16 product terms

• User-programmable macrocell

— Output polarity control

— Individually selectable for registered or combinatorial operation

• Up to 22 input terms and 10 outputs

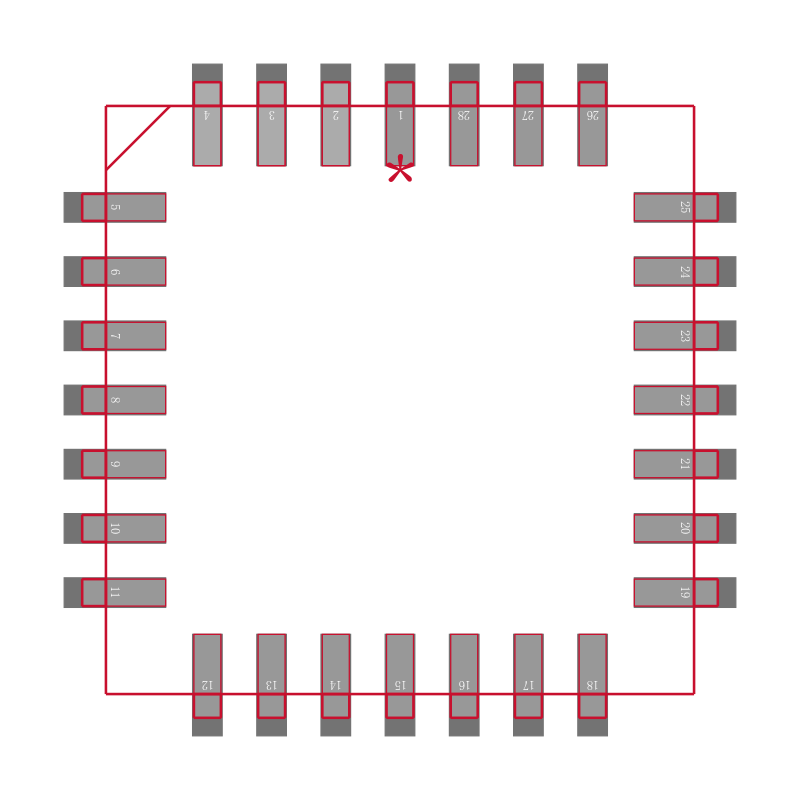

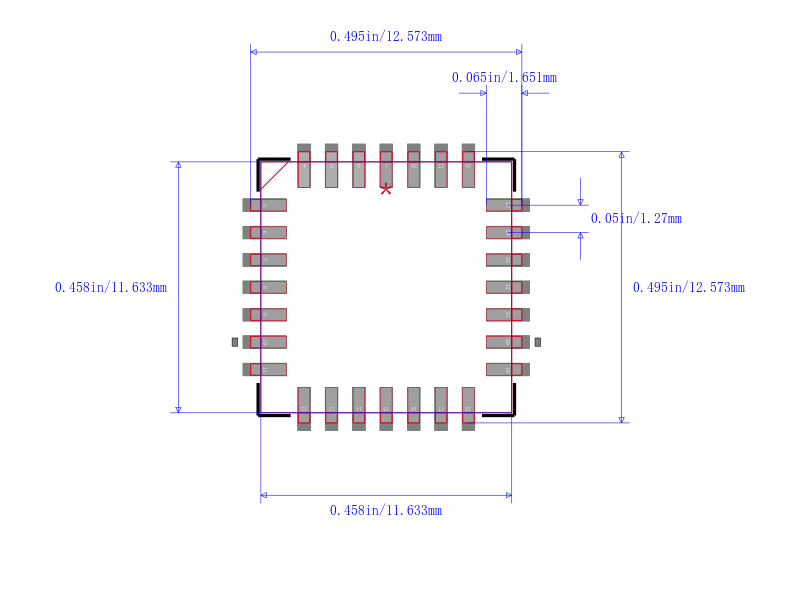

• DIP, LCC, and PLCC available

— 7.5 ns commercial version

5 ns tCO

5 ns tS

7.5 ns tPD

133-MHz state machine

— 10 ns military and industrial versions

6 ns tCO

6 ns tS

10 ns tPD

110-MHz state machine

— 15-ns commercial and military

versions

— 25-ns commercial and military

versions

• High reliability

— Proven Flash EPROM technology
