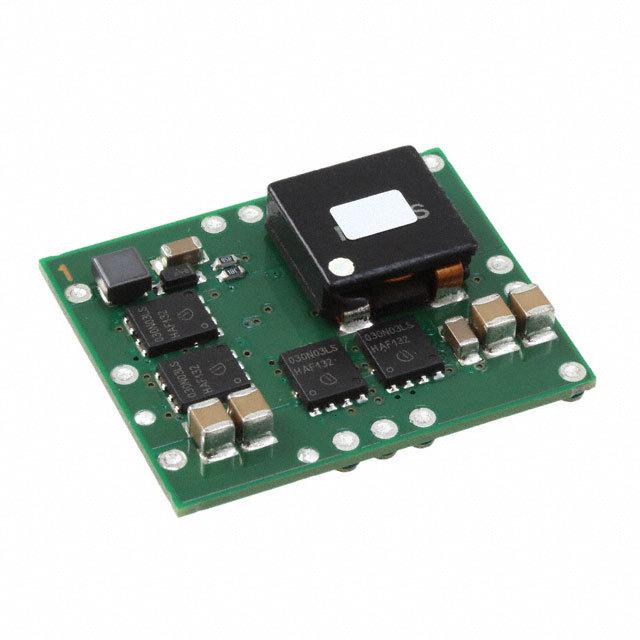

![PTH03030WAS](https://image.ruidan.com/images/ics/ic_281/chanpintu/pth03030was-H0PFZu9e-KZYVypzqR.png)
电源电压DC 3.30 V
输出接口数 1
输入电压DC 2.95V ~ 3.65V
输出电压 0.8V ~ 2.5V
输出电流 30 A
调节输出数 1
拓扑结构 Buck
输入电压Max 3.65 V
输入电压Min 2.95 V
输出电流Max 30 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 13
封装 SMD-13
长度 34.8 mm
宽度 28.5 mm
高度 9.57 mm
封装 SMD-13
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 ITE(商业)
RoHS标准 Non-Compliant
含铅标准 Contains Lead
![PTH03030WAS引脚图](https://image.ruidan.com/images/ics/ic_281/yinjiaotu/pth03030was-202006096w-nqQ4RD0dZ.png)

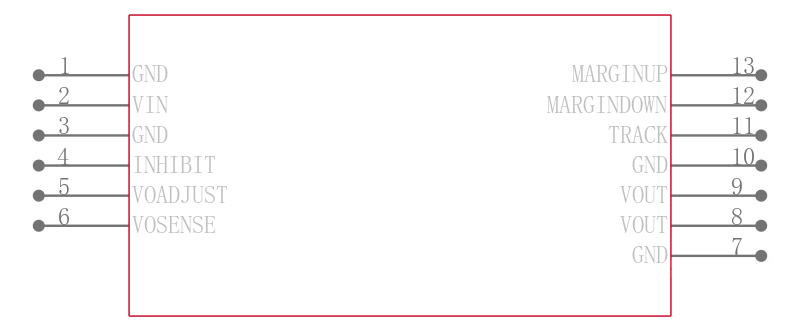

PTH03030WAS引脚图
![PTH03030WAS封装图](https://image.ruidan.com/images/ics/ic_281/fengzhuangtu/pth03030was-202006096w-BZBa68kDj.png)

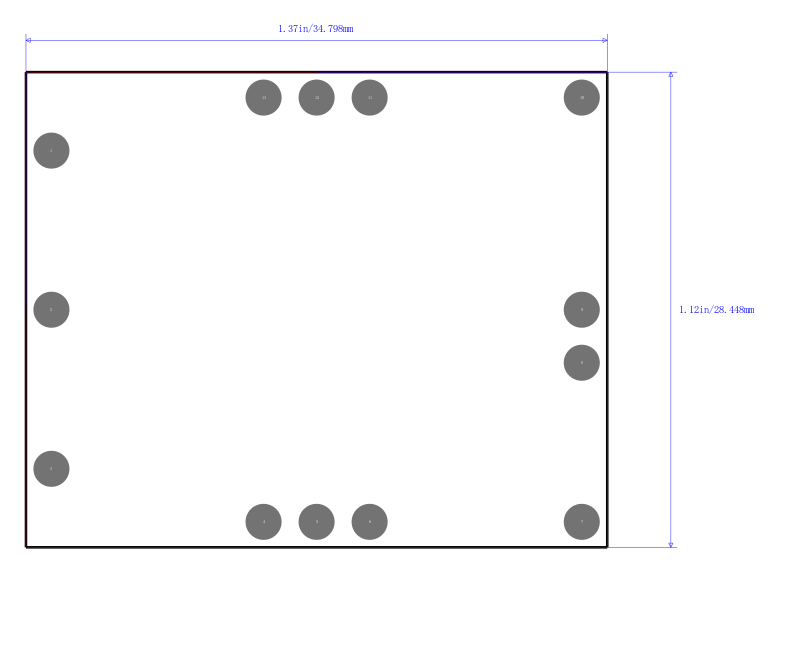

PTH03030WAS封装图
![PTH03030WAS封装焊盘图](https://image.ruidan.com/images/ics/ic_281/hanpantu/pth03030was-202006096w-eqX4PgGgq.png)

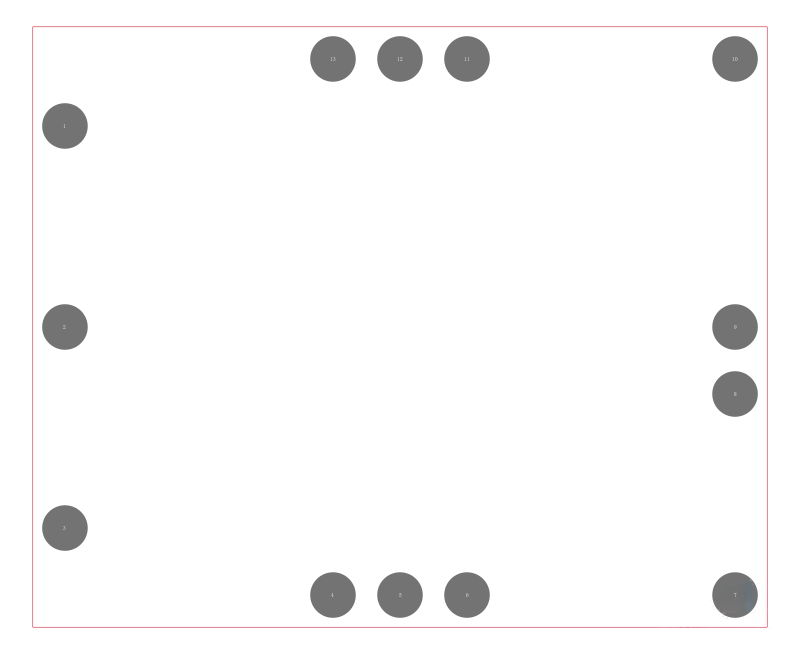

PTH03030WAS封装焊盘图
型号 | 制造商 | 描述 | 购买 |
---|---|---|---|
PTH03030WAS | TI 德州仪器 | 30 -A , 3.3 V输入非隔离宽输出调节电源模块 30-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module | 搜索库存 |
图片 | 型号/品牌/封装 | 代替类型 | 描述 | 替代型号对比 |
---|---|---|---|---|
型号: PTH03030WAS 品牌: TI 德州仪器 封装: Surface 2.5V 30A | 当前型号 | 30 -A , 3.3 V输入非隔离宽输出调节电源模块 30-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module | 当前型号 | |
型号: PTH03030WAST 品牌: 德州仪器 封装: 13-SMD 2.5V 30A | 完全替代 | 30 -A , 3.3 V输入非隔离宽输出调节电源模块 30-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module | PTH03030WAS和PTH03030WAST的区别 | |
型号: PTH03030WAZ 品牌: 德州仪器 封装: 13DIPMODULE 2.5V 2.95V to 3.65V | 完全替代 | 30 -A , 3.3 V输入非隔离宽输出调节电源模块 30-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module | PTH03030WAS和PTH03030WAZ的区别 | |
型号: PTH03030WAZT 品牌: 德州仪器 封装: 13-SMD 2.5V 30A | 完全替代 | 30 -A , 3.3 V输入非隔离宽输出调节电源模块 30-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module | PTH03030WAS和PTH03030WAZT的区别 |
