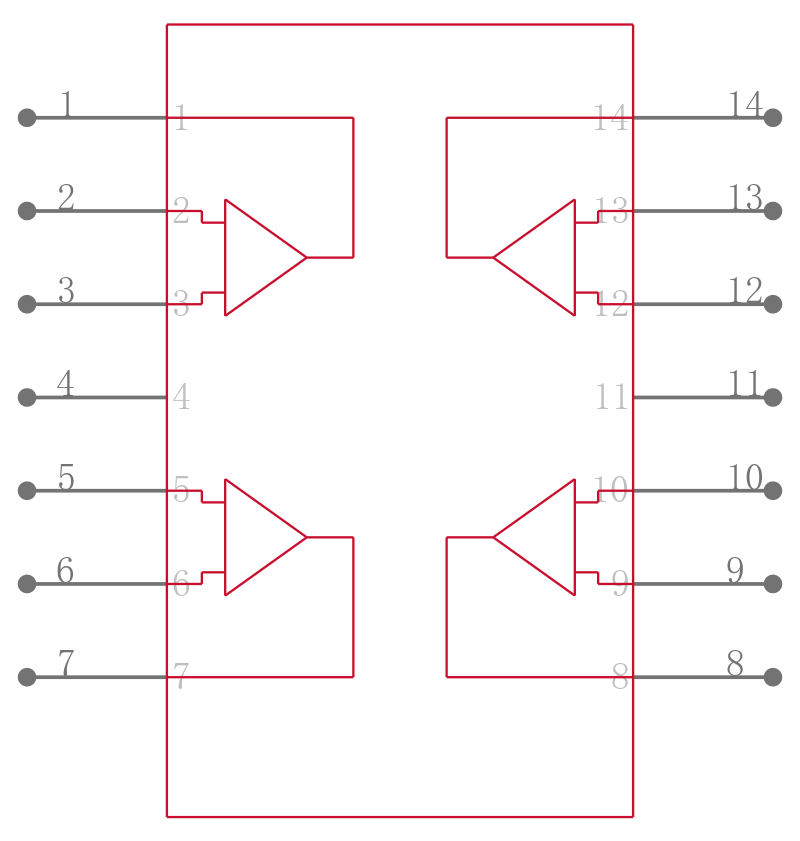

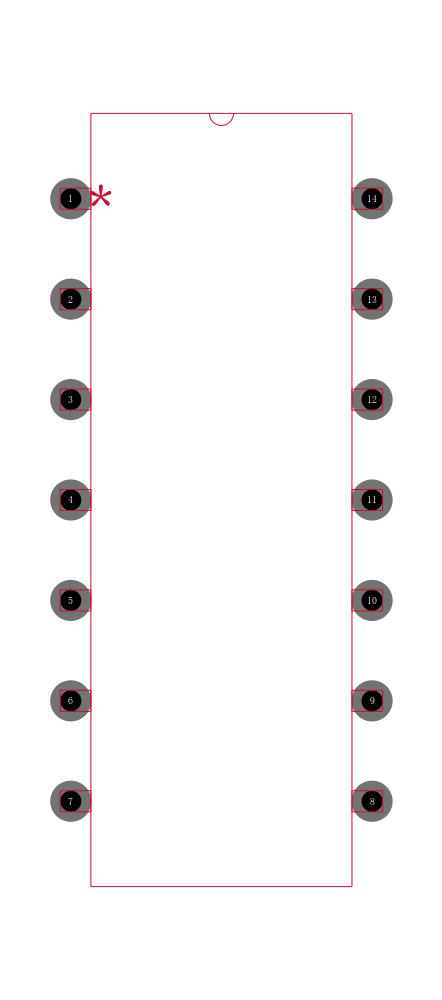

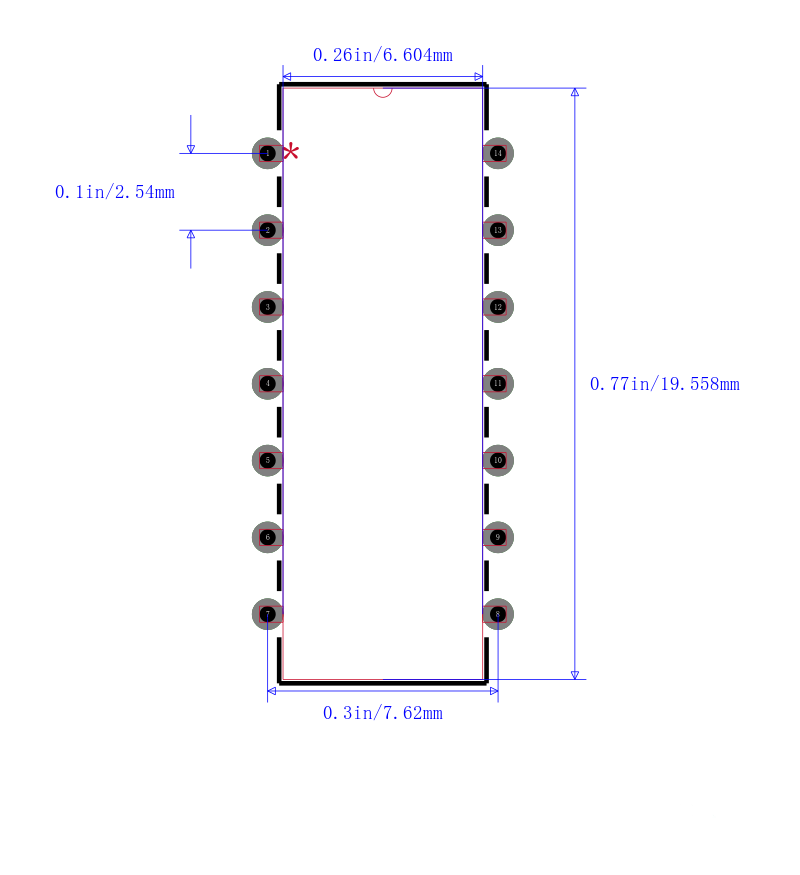

MC33274AP
数据手册.pdf高性能运算放大器 HIGH PERFORMANCE OPERATIONAL AMPLIFIERS
Single Supply, High Slew Rate, Low Input Offset Voltage Operational Amplifiers
The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip−R−Trim element for input offset voltage reduction. The MC33272/74 series of operational amplifiers exhibits low input offset voltage and high gain bandwidth product.
Features
•Input Offset Voltage Trimmed to 100 V Typ
•Low Input Bias Current: 300 nA
•Low Input Offset Current: 3.0 nA
•High Input Resistance: 16 M
•Low Noise: 18 nV/ Hz √ @ 1.0 kHz
•High Gain Bandwidth Product: 24 MHz @ 100 kHz
•High Slew Rate: 10 V/s
•Power Bandwidth: 160 kHz
•Excellent Frequency Stability
•Unity Gain Stable: w/Capacitance Loads to 500 pF
•Large Output Voltage Swing: +14.1 V/ −14.6 V
•Low Total Harmonic Distortion: 0.003%
•Power Supply Drain Current: 2.15 mA per Amplifier
•Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V
•ESD Diodes Provide Added Protection to the Inputs
•Pb−Free Packages are Available
•NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
