M27C1001-12XB1

1Mbit 128Kbit x 8 UV EPROM and OTP EPROM

Summary description

The M27C1001 is a 1 Mbit EPROM offered in the two ranges: UV ultra violet erase and OTP one time programmable. It is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits.

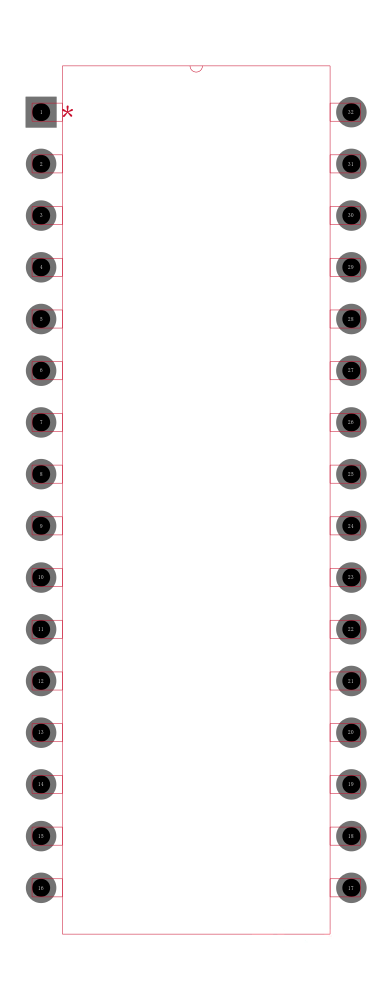

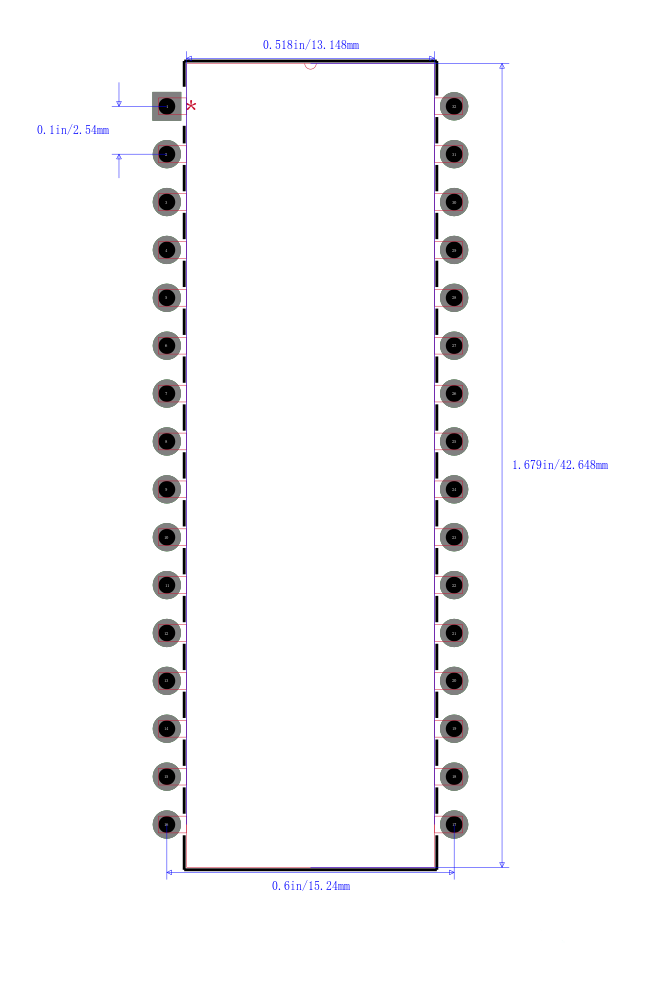

The FDIP32W window ceramic frit-seal package has a transparent lid that enables the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Features

■ 5v ± 10% Supply Voltage in Read Operation

■ Access Time: 35ns

■ Low Power Consumption:

– Active Current: 30 mA at 5 MHz

– Standby Current: 100 µA

■ Programming Voltage: 12.75V ± 0.25V

■ Programming Time: 100 µs/word

■ Electronic Signature

– Manufacturer Code: 20h

– Device Code: 05h

■ ECOPACK® packages available
