MAX690SESA

3.0V / 3.3V微处理器监控电路 3.0V/3.3V Microprocessor Supervisory Circuits

General Description

These microprocessor µP supervisory circuits reduce the complexity and number of components required for power-supply monitoring and battery-control functions in µP systems. They significantly improve system reliability and accuracy compared to separate ICs or discrete components.

These devices are designed for use in systems powered by 3.0V or 3.3V supplies. See the selector guide in the back of this data sheet for similar devices designed for 5V systems. The suffixes denote different reset threshold voltages: 3.075V T, 2.925V S, and 2.625V R see the Reset Thresholdsection in the Detailed Description. All these parts are available in 8-pin DIP and SO packages.

Features

♦ RESET and RESET Outputs

♦Manual Reset Input

♦Precision Supply-Voltage Monitor

♦200ms Reset Time Delay

♦Watchdog Timer 1.6s timeout

♦Battery-Backup Power Switching—Battery Can Exceed VCCin Normal Operation

♦40µA VCCSupply Current

♦1µA Battery Supply Current

♦Voltage Monitor for Power-Fail or Low-Battery Warning

♦Guaranteed RESET Assertion to VCC= 1V

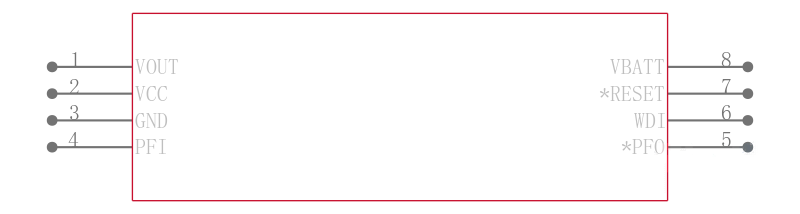

♦8-Pin DIP and SO Packages

Applications

Battery-Powered Computers and Controllers

Embedded Controllers

Intelligent Instruments

Automotive Systems

Critical µP Power Monitoring

Portable Equipment
