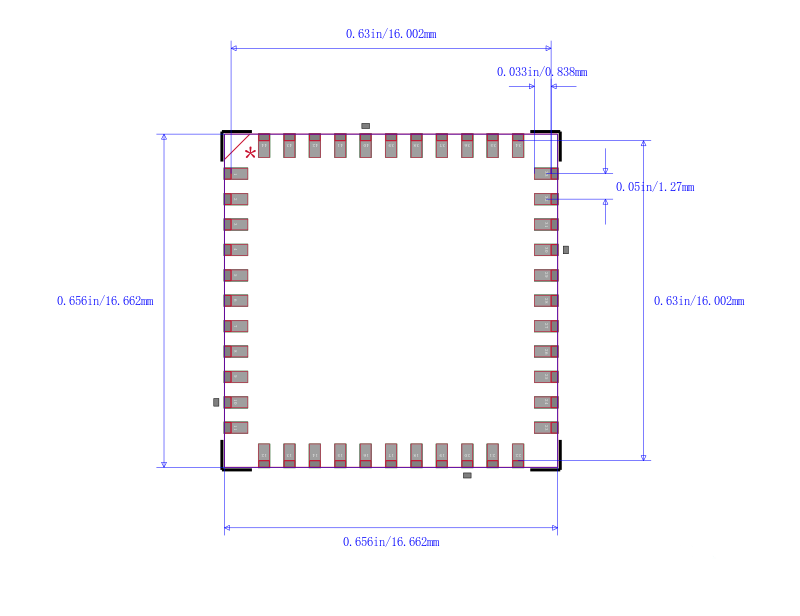

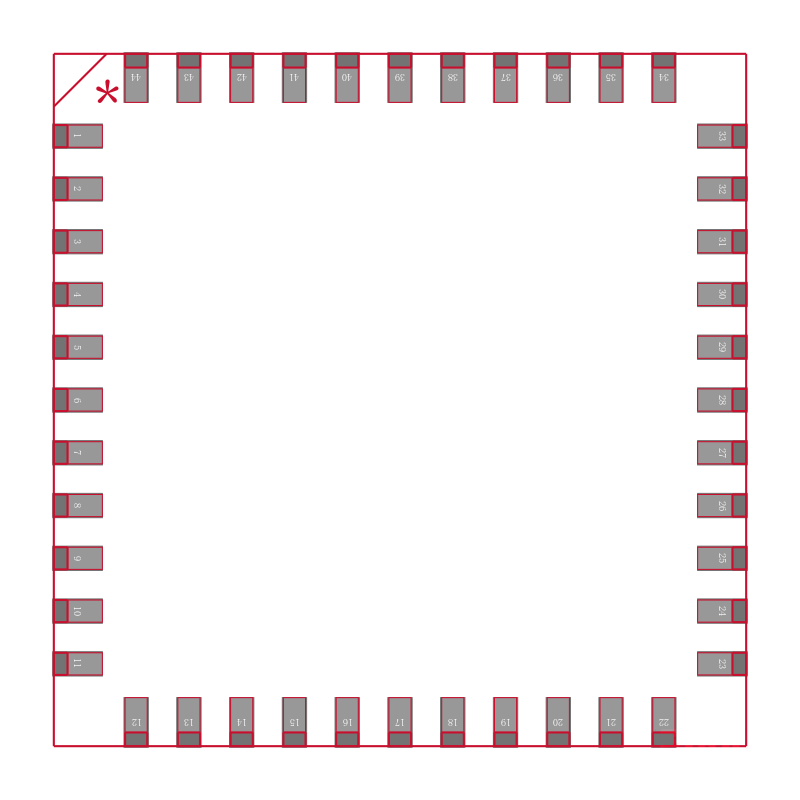

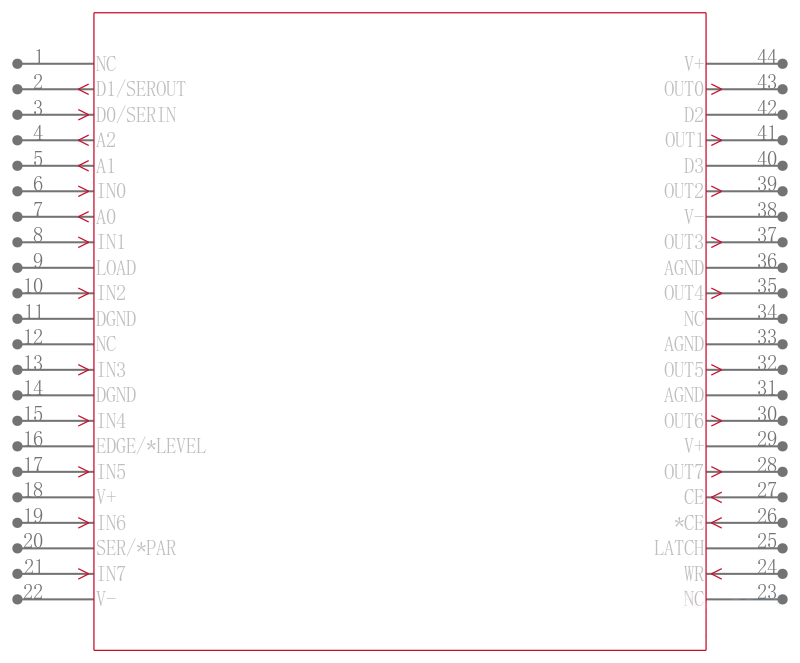

MAX4456CQH

低成本的4x4 ， 8x4的8×8视频交叉点开关 Low-Cost 4x4, 8x4, 8x8 Video Crosspoint Switches

General Description

The MAX4359/MAX4360/MAX4456 low-cost video cross point switches are designed to reduce component count, board space, design time, and system cost. Each contains a matrix of T-switches that connect any of their four MAX4359 or eight MAX4360/MAX4456 video inputs to any of their buffered outputs, in any combination. Each matrix output is buffered by an internal, high-speed 250V/µs, unity-gain amplifier that is capable of driving 400Ω and 20pF at 2.6Vp-p. For applications requiring increased drive capability, buffer the MAX4359/MAX4360/MAX4456 outputs with the MAX497 quad, gain-of-two video line driver.

Features

♦ Eight MAX4456 or Four MAX4359/MAX4360

   Internal Buffers

      250V/µs Slew Rate

      Three-State Output Capability

      Power-Saving Disable Feature

      65MHz -3dB Bandwidth

♦ Routes Any Input Channel to Any Output Channel

♦ Serial or Parallel Digital Interface

♦ Expandable for Larger Switch Matrices

♦ 80dB All-Channel Off-Isolation at 5MHz

♦ 70dB Single-Channel Crosstalk

♦ Straight-Through Pinouts Simplify Layout

♦ Low-Cost Pin-Compatible Alternative to MAX456 MAX4456

Applications

  High-Speed Signal Routing

  Video-On-Demand Systems

  Video Test Equipment

  Video Conferencing

  Security Systems
