MAX9111EKA

单路/双路LVDS线接收器，提供超低脉冲偏差， SOT23封装 Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23

General Description

The MAX9111/MAX9113 single/dual low-voltage differential signaling LVDS receivers are designed for high speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 300ps max pulse skew required for high-resolution imaging applications such as laser printers and digital copiers.

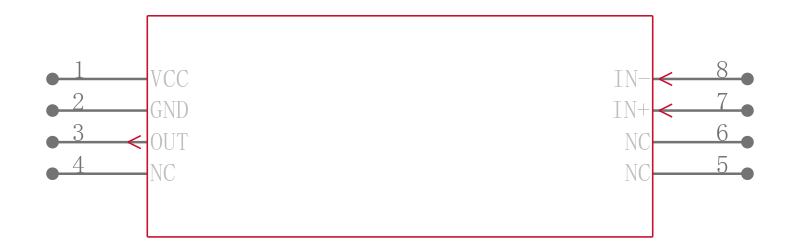

The MAX9111 is a single LVDS receiver, and the MAX9113 is a dual LVDS receiver.

Features

♦ Low 300ps max Pulse Skew for High-Resolution Imaging and High-Speed Interconnect

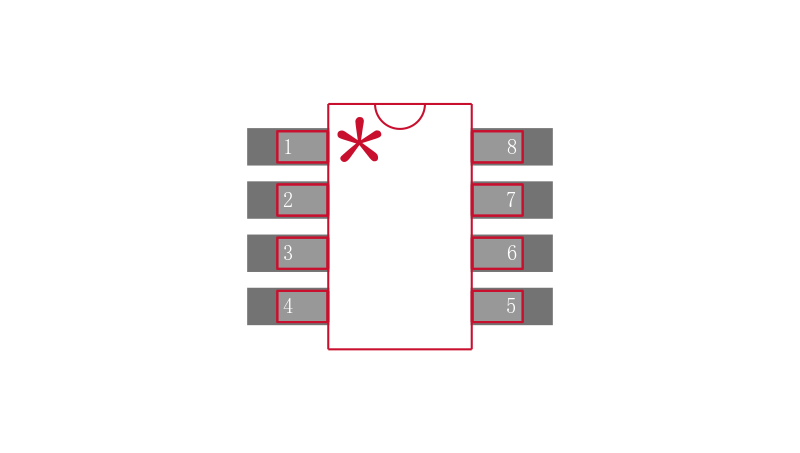

♦ Space-Saving 8-Pin SOT23 and SO Packages

♦ Pin-Compatible Upgrades to DS90LV018A and DS90LV028A SO Packages Only

♦ Guaranteed 500Mbps Data Rate

♦ Low 29mW Power Dissipation at 3.3V

♦ Conform to EIA/TIA-644 Standard

♦ Single +3.3V Supply

♦ Flow-Through Pinout Simplifies PCB Layout

♦ Fail-Safe Circuit Sets Output High for Undriven Inputs

♦ High-Impedance LVDS Inputs when Powered Off

Applications

  Laser Printers

  Digital Copiers

  Cellular Phone Base Stations

  Telecom Switching Equipment

  Network Switches/Routers

  LCD Displays

  Backplane Interconnect

  Clock Distribution
