MAX3223CAP

MAX3223CAP

数据手册.pdf
Maxim Integrated 美信 电子元器件分类

1μA电源电流,真+ 3V至+ 5.5V的RS - 232收发器,具有自动关机 1レA Supply-Current, True +3V to +5.5V RS-232 Transceivers with AutoShutdown

General Description

The MAX3221/MAX3223/MAX3243 achieve 1µA supply current with Maxim’s revolutionary AutoShutdown™ feature. When the MAX3221/MAX3223/MAX3243 do not sense a valid signal level on their receiver inputs, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The system turns on again when a valid level is applied to any RS-232 receiver input. As a result, the system saves power without changes to the existing BIOS or operating system.

Features

♦For Space-Constrained Applications: MAX3228/MAX3229: +2.5V to +5.5V RS-232 Transceivers in UCSP™

♦For Integrated ESD Protection: MAX3222E/MAX3232E/MAX3237E/MAX3241E
.
/ MAX3246E: ±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers MAX3246E Available in UCSP Package

♦For Low-Voltage or Data Cable Applications: MAX3380E/MAX3381E: +2.5V to +5.5V, 1µA, 2 Tx/2 Rx RS-232 Transceivers with ±15kV ESD Protected I/O and Logic Pins

MAX3223CAP中文资料参数规格
技术参数

电源电压DC 3.00V min

供电电流 300 µA

数据速率 120 kbps

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压Max 5.5 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 SSOP-20

外形尺寸

长度 7.33 mm

宽度 5.38 mm

高度 1.78 mm

封装 SSOP-20

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 PB free

MAX3223CAP引脚图与封装图

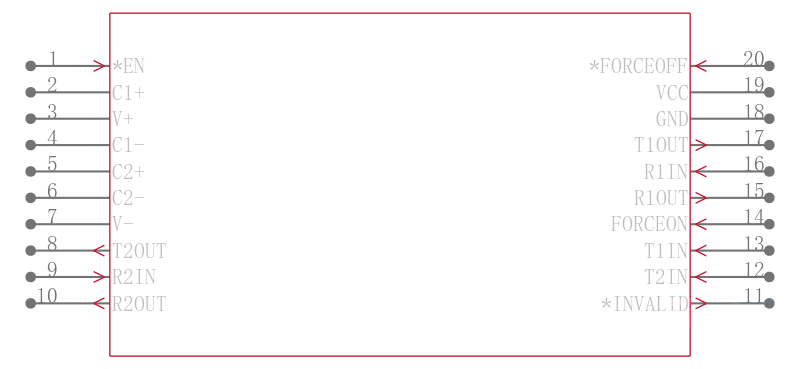

MAX3223CAP引脚图

MAX3223CAP引脚图

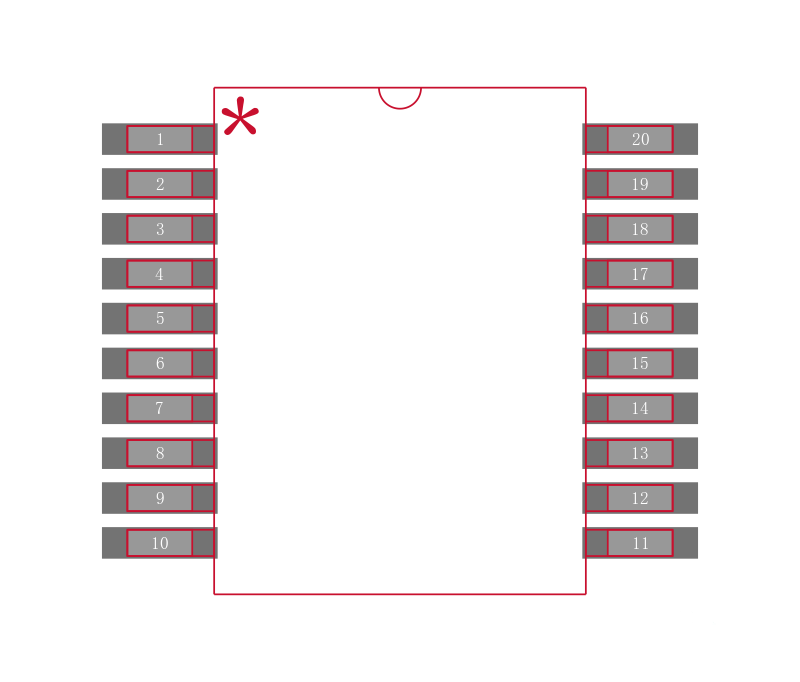

MAX3223CAP封装图

MAX3223CAP封装图

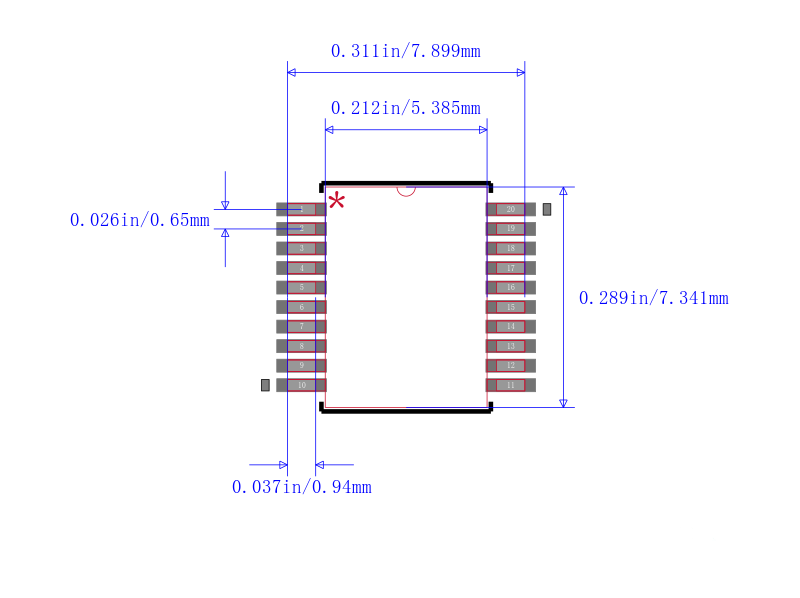

MAX3223CAP封装焊盘图

MAX3223CAP封装焊盘图
