MS1V-T1K 32.768KHZ 7PF+-20PPM

MS1V-T1K ### 手表用晶体 32.768kHz

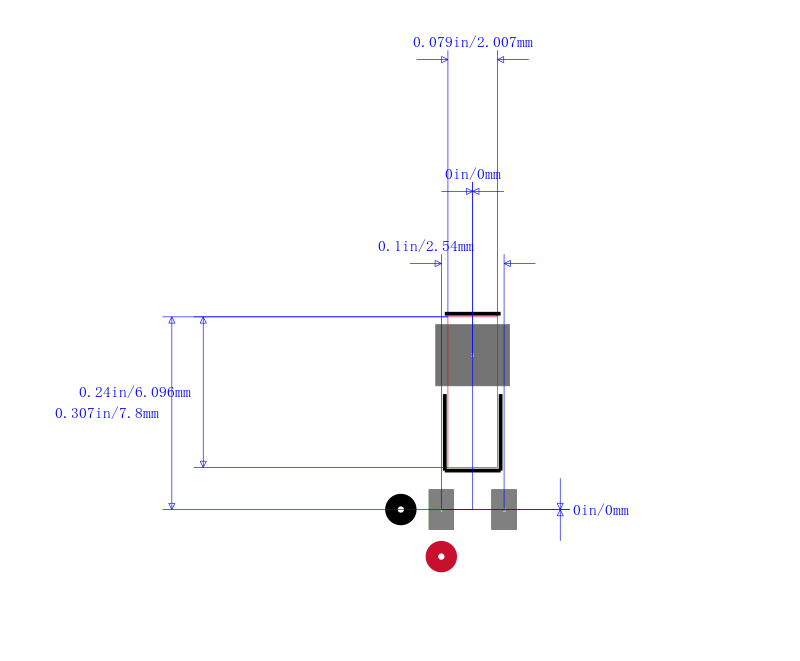

The MS1V-T1K 32.768KHZ +-20PPM 7PF is a 8.1 x 2mm 20ppm surface-mount cylindrical Crystal with square-bodied metal-can with formed leads. The MS1V-T1K series features a high-quality with a with a precision high-volume photolithographic process and operating in the fundamental mode. Due to highly automated, large-volume production, the MS1V-T1K is an ideal for any consumer and industrial applications.

.

Tuning fork mode

.

60kR Maximum series resistance

.

0.9pF Typical static capacitance

.

1µW Maximum drive level

.

500MR Minimum insulation resistance
