M83513/25-D01NP

M83513/25-D01NP

数据手册.pdf
Glenair 连接器

Glenair Micro D Connectors MIL-DTL-83513, Vertical MountGlenair Micro D vertical mount printed circuit board connectors are potted with epoxy resin and are environmentally sealed. These military grade connectors feature electroless nickel plated aluminium shells and flourosilicone interfacial seals. The connector contact terminals are spaced on .100 inch by .100 inch centers.Electroless nickel plated metal shell Attached jackposts Printed Circuit Tail length .109 Inches Current rating 3A max. Magnetic permeability 2.0 μΩ max Operating temp -55 to +150 °C 500 mating cycles ### 注Socket connector shown.### 标准MIL-DTL-83513, BS9523F0002, BS9523F0013

Micro D Connectors MIL-DTL-83513, Vertical Mount

Glenair Micro D vertical mount printed circuit board connectors are potted with epoxy resin and are environmentally sealed. These military grade connectors feature electroless nickel plated aluminium shells and flourosilicone interfacial seals. The connector contact terminals are spaced on .100 inch by .100 inch centers.

Electroless nickel plated metal shell

Attached jackposts

Printed Circuit Tail length .109 Inches

Current rating 3A max.

Magnetic permeability 2.0 μΩ max

Operating temp -55 to +150 °C

500 mating cycles

### 注

Socket connector shown.

### 标准

MIL-DTL-83513, BS9523F0002, BS9523F0013

M83513/25-D01NP中文资料参数规格
技术参数

触点数 25

额定电流 3 A

绝缘电阻 5000 MΩ

排数 2

拔插次数 500

额定电流Max 3 A

工作温度Max 150 ℃

工作温度Min -55 ℃

接触电阻Max 8 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 44.2 mm

宽度 7.87 mm

高度 13.41 mm

物理参数

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 150℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

军工级 Yes

M83513/25-D01NP引脚图与封装图

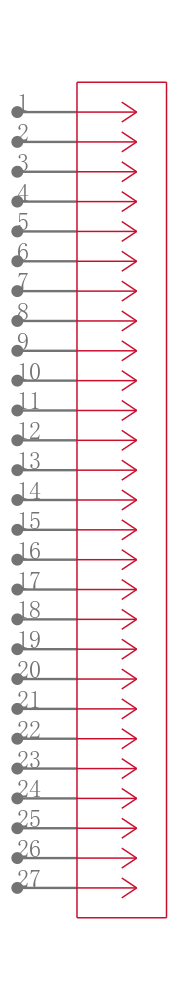

M83513/25-D01NP引脚图

M83513/25-D01NP引脚图

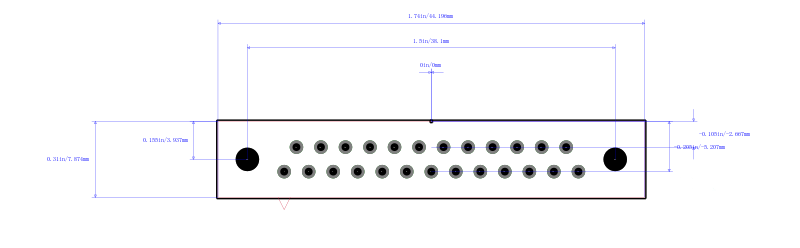

M83513/25-D01NP封装图

M83513/25-D01NP封装图

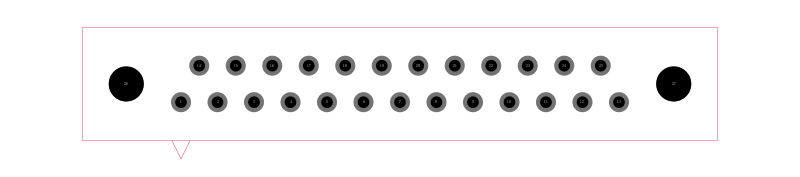

M83513/25-D01NP封装焊盘图

M83513/25-D01NP封装焊盘图
