MAX5354EPA

10位电压输出DAC ，采用8引脚μMAX封装 10-Bit Voltage-Output DACs in 8-Pin レMAX

General Description

The MAX5354/MAX5355 combine a low-power, voltage output, 10-bit digital-to-analog converter DAC and a

precision output amplifier in an 8-pin µMAX or DIP package. The MAX5354 operates from a single +5V supply,

and the MAX5355 operates from a single +3.3V supply. Both devices draw less than 280µA of supply current.

Features

♦10-Bit DAC with Configurable Output Amplifier

♦+5V Single-Supply Operation MAX5354

 +3.3V Single-Supply Operation MAX5355

♦Low Supply Current: 0.28mA Normal Operation 2µA Shutdown Mode

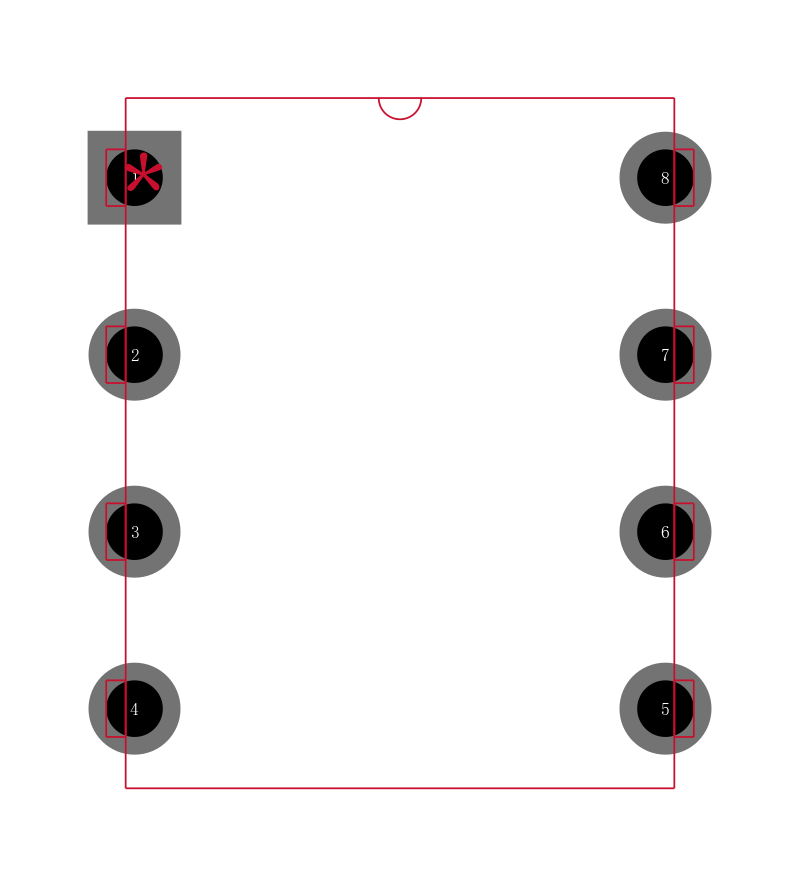

♦Available in 8-Pin µMAX

♦Power-On Reset Clears DAC Output to Zero

♦SPI/QSPI and Microwire Compatible

♦Schmitt-Trigger Digital Inputs for Direct Optocoupler Interface

♦+3.3V MAX5355 Directly Interfaces with +5V Logic

Applications

Digital Offset and Gain Adjustment

Industrial Process Controls

Microprocessor-Controlled Systems

Portable Test Instruments

Remote Industrial Controls
