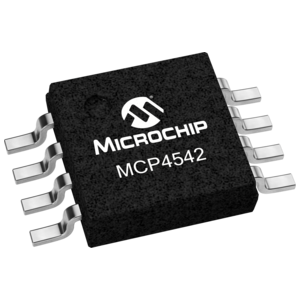

MCP4542-103E/MS

MCP4542-103E/MS

数据手册.pdf
Microchip(微芯) 电子元器件分类

MCP454x/456x/464x/466x 数字电位计### 数字电位计 - Microchip

MCP454x/456x/464x/466x 数字电位计

### 数字电位计 -


得捷:
IC DGTL POT 10KOHM 129TAP 8MSOP


立创商城:
MCP4542-103E/MS


欧时:
Microchip MCP4542-103E/MS 10kΩ 129位置 线性 数字电位计, 串行 - I2C接口, 8引脚 MSOP封装


艾睿:
This MCP4542-103E/MS digital potentiometer from Microchip Technology will be incredibly useful when changing the resistance in your application. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device comes in tube packaging. This device uses a single power supply.


Allied Electronics:
IC, DIGITAL POT.; NO. CHANNELS, 1; 10KOHMS; 256 TAPS; I2C; MSOP-8


安富利:
Digital Potentiometer 128POS 10KOhm Single 8-Pin MSOP Tube


Chip1Stop:
Digital Potentiometer 128POS 10KOhm Single 8-Pin MSOP Tube


TME:
Integrated circuit: rheostat; 10kΩ; I2C; 8bit; MSOP8; SMD


Verical:
Digital Potentiometer 10kOhm 128POS Non-Volatile Linear Automotive 8-Pin MSOP Tube


Newark:
# MICROCHIP  MCP4542-103E/MS  Non Volatile Digital Potentiometer, 10 kohm, Single, I2C, Serial, Linear, ± 20%, 2.7 V


儒卓力:
**1xDCP 10k?/256 I2C MSOP8 SMD **


MCP4542-103E/MS中文资料参数规格
技术参数

电源电压DC 2.70V min

容差 ±20 %

供电电流 0.0025 mA

电路数 1

通道数 1

针脚数 128

电阻 10 kΩ

阻值偏差 ±20 %

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.8V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

长度 3 mm

宽度 3 mm

高度 0.95 mm

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±150 ppm/℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

MCP4542-103E/MS引脚图与封装图
MCP4542-103E/MS引脚图

MCP4542-103E/MS引脚图

MCP4542-103E/MS封装图

MCP4542-103E/MS封装图

MCP4542-103E/MS封装焊盘图

MCP4542-103E/MS封装焊盘图
