MAX11901ETP+

MAXIM INTEGRATED PRODUCTS  MAX11901ETP+  模数转换器, 16 bit, 1.6 MSPS, 单, 1.7 V, 1.9 V, TQFN

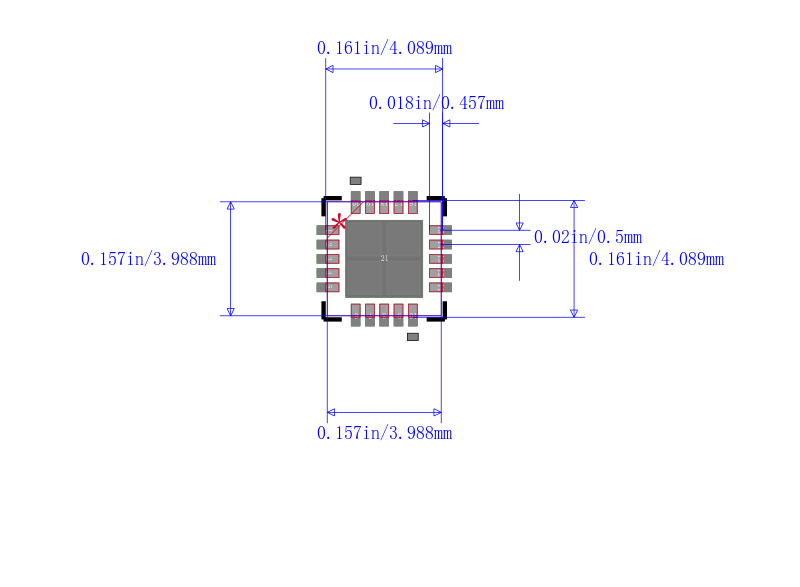

* High DC/AC Accuracy Provides Better Measurement Quality * 16-Bit Resolution with No Missing Codes * ±0.5 LSB INL and ±0.25 LSB DNL Maximum at 16 Bits * 95.2dB SNR and 95.0dB SINAD at fIN = 10kHz * -115dB THD at fIN = 10kHz * High Sampling Rate SAR Architecture Enables Fast Settling and Acquisition * 1.6Msps Throughput with No Pipeline Delay * Integration Simplifies Design * Integrated Reference Buffers, VREF = 2.5V to 3.6V * ±VREF Unipolar Differential Analog Input Range * Scalable Ultra-Low Power Supply Reduces Power Consumption * 9mW at 1.6Msps * Flexible Low-Voltage Supplies Save Cost * 1.8V Analog and Digital Core Supply * 1.5V to 3.6V Digital Interface Supply * 3.3V REFVDD Reference Buffer Supply * Flexible, Industry-Standard Serial Interface and Small Package Reduce Size * SPI-/QSPI™-/MICROWIRE®/DSP-Compatible * 20-Pin, 4mm x 4mm, TQFN Package
