MAX11337ATJ+
数据手册.pdfMAXIM INTEGRATED PRODUCTS MAX11337ATJ+ 模数转换器, 12 bit, 500 kSPS, 单, 2.35 V, 3.6 V, TQFN

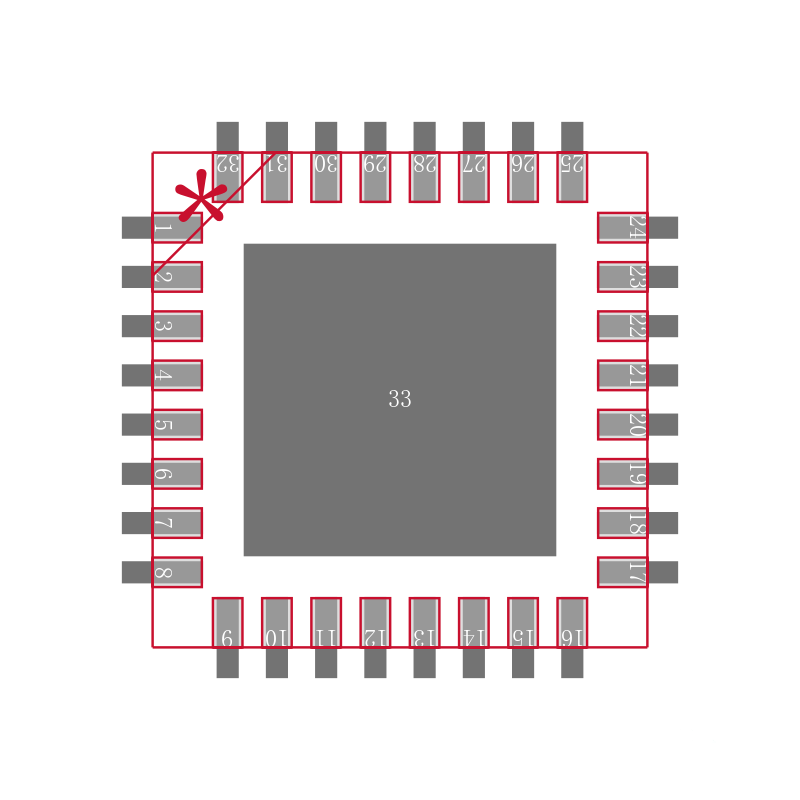

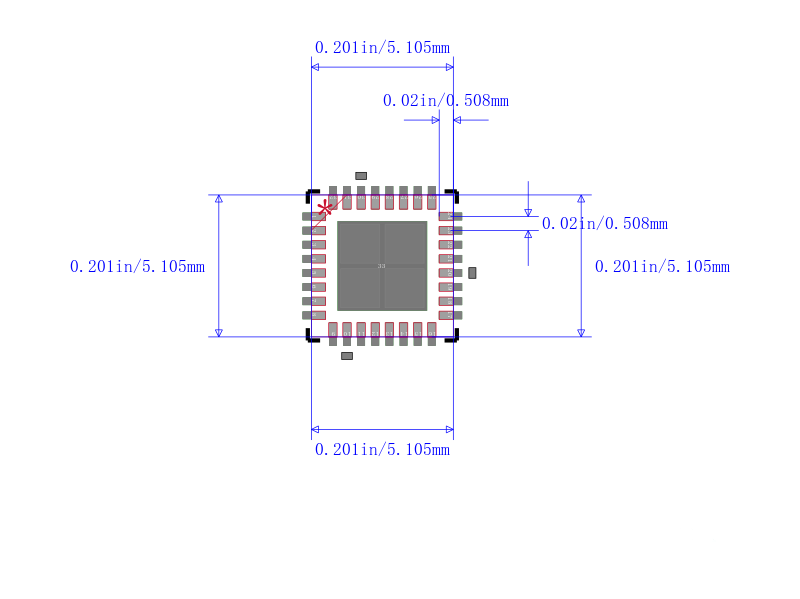

The is a 12bit, 16-channel analogue to digital converter ADC with post-mux external signal conditioning access in 32 pin TQFN package. This is a high speed, low power, serial output successive approximation register SAR ADC with external reference and 500KHz full linear bandwidth. The MAX11337 provides external access to output of integrated mux and ADC input to simplify conditioning. It includes both internal and external clock modes. This device has scan mode in both internal and external clock modes. The internal clock mode features internal averaging to increase SNR. The external clock mode features SampleSetK technology and user programmable analogue input channel sequencer. The MAX11337 includes AutoShutdown, fast wake-up and high speed 3-wire serial interface. It has full power-down mode for optimal power management. The 8MHz, 3-wire serial interface directly connects to SPI, QSPI and MICROWIRE devices without external logic.
- .
- 1.5V to 3.6V digital I/O supply voltage and 2.35V to 3.6V supply voltage
- .
- Operating temperature range from -40°C to 125°C
- .
- Highly integrated precision ADC saves space while retaining flexibility
- .
- ±1LSB INL, ±1LSB DNL no missing codes and 70dB SINAD at 100KHz
- .
- Analogue multiplexer with true differential track/hold
- .
- Two software selectable bipolar input ranges ±VREF+/2, ±VREF+
- .
- Low power consumption, 4.2mW at 500Ksps with 3V supplies and 2µA full shutdown current
- .
- Full power bandwidth of 30MHz -3dB, 5MHz -0.1dB & full linear bandwidth of 0.5MHz SINAD >= 70dB
- .
- Externally accessible multiplex output and ADC input
- .
- Offset error of 1.2LSB and gain error of -0.02LSB
