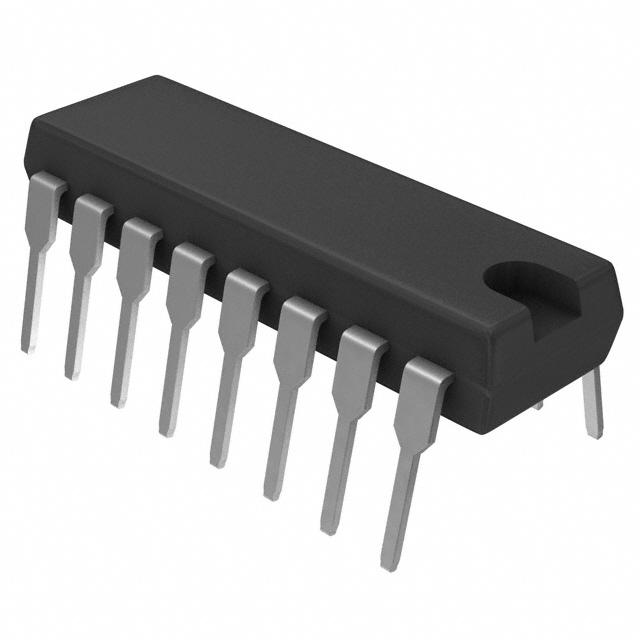

MAX5155BCPE
数据手册.pdf低功耗,双通道, 12位电压输出DAC,串行接口 Low-Power, Dual, 12-Bit Voltage-Output DACs with Serial Interface
General Description
The MAX5154/MAX5155 low-power, serial, voltage-output, dual 12-bit digital-to-analog converters DACs consume only 500µA from a single +5V MAX5154 or +3V MAX5155 supply. These devices feature Rail-to Rail®output swing and are available in a space-saving 16-pin QSOP package. To maximize the dynamic range, the DAC output amplifiers are configured with an internal gain of +2V/V.
Features
♦12-Bit Dual DAC with Internal Gain of +2V/V
♦Rail-to-Rail Output Swing
♦12µs Settling Time
♦Single-Supply Operation: +5V MAX5154
+3V MAX5155
♦ Low Quiescent Current: 500µA normal operation
2µA shutdown mode
♦SPI/QSPI and Microwire Compatible
♦Available in Space-Saving 16-Pin QSOP Package
♦Power-On Reset Clears Registers and DACs to Zero
♦Adjustable Output Offset
Applications
Industrial Process Control
Remote Industrial Controls
Digital Offset and Gain Adjustment
Microprocessor Controlled Systems
Motion Control
Automatic Test Equipment ATE
