MAX5354EUA+
数据手册.pdfMAXIM INTEGRATED PRODUCTS MAX5354EUA+ 数模转换器, 低功率, 10 bit, 串行, 4.5V 至 5.5V, µMAX, 8 引脚

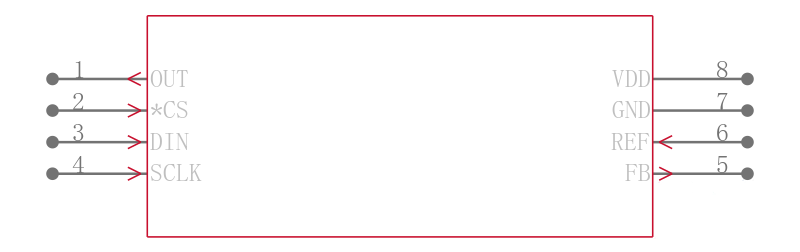

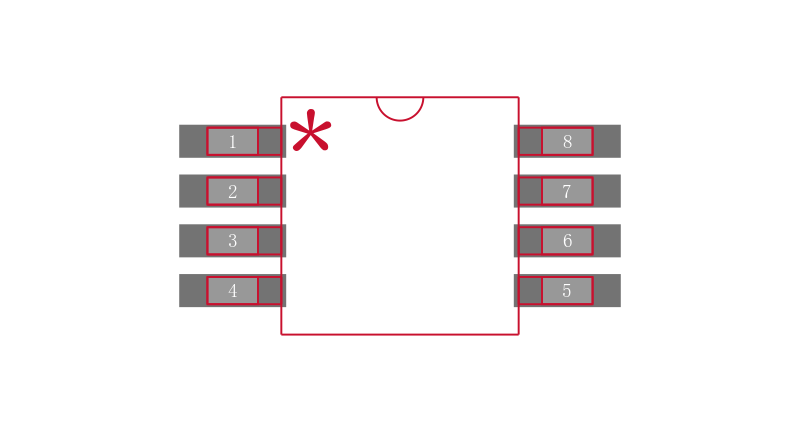

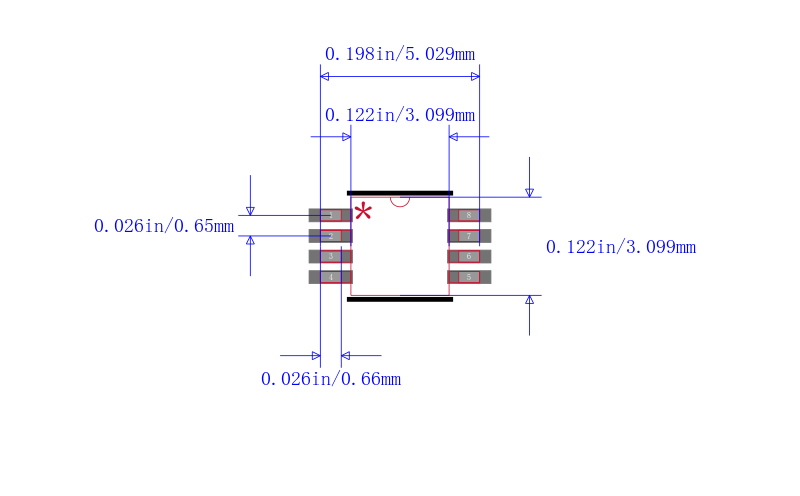

The is a 10bit voltage-output digital to analogue converter DAC in 8 pin µMAX package. This DAC easily addressed using a simple 3-wire serial interface & includes a 16bit shift register and has a double buffered input composed of an input register and a DAC register. The DAC is an inverted R-2R ladder network that converts a digital input 10 data bits plus three sub-bits into an equivalent analogue output voltage in proportion to the applied reference voltage. The output amplifier"s inverting input is available to the user allowing specific gain configurations, remote sensing and high output current capability. A 16bit serial word loads data into the input register. The DAC register can be updated independently or simultaneously with the input register. All logic inputs are TTL/CMOS logic compatible and buffered with Schmitt triggers to allow direct interfacing to optocouplers. This is used in digital offset and gain adjustment and microprocessor-controlled systems.
- .
- Supply voltage range is 4.5V to 5.5V
- .
- Operating temperature range from -40°C to 85°C
- .
- Supply current of 280µA in normal mode and 4µA in shutdown mode
- .
- Power-on reset clears DAC output to zero
- .
- SPI/QSPI and Microwire compatible
- .
- Schmitt-trigger digital inputs for direct optocoupler interface
- .
- Features software shutdown and power-on reset
- .
- Power-supply rejection ratio is 800µV/V
