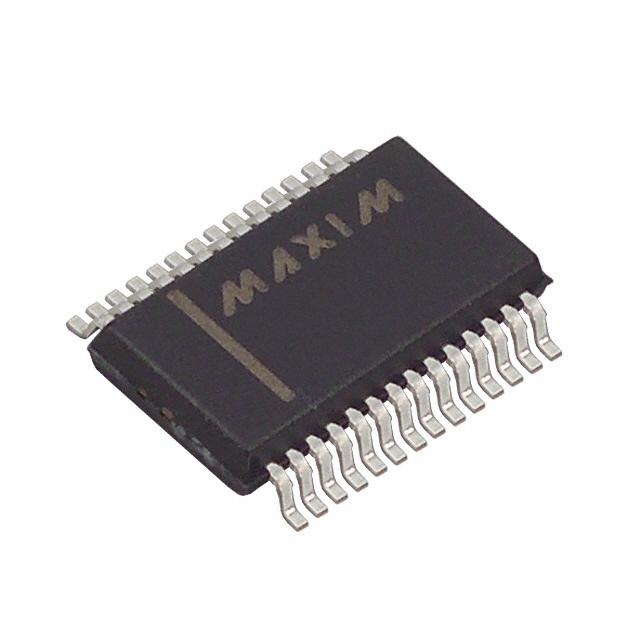

MAX223CAI

\+ 5V供电,多通道RS - 232驱动器/接收器 +5V-Powered, Multichannel RS-232 Drivers/Receivers

General Description

The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.

These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5µW. The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.

Next-Generation Device Features

♦ For Low-Voltage, Integrated ESD Applications

   MAX3222E/MAX3232E/MAX3237E/MAX3241E/

   MAX3246E: +3.0V to +5.5V, Low-Power, Up to

   1Mbps, True RS-232 Transceivers Using Four

   0.1µF External Capacitors MAX3246E Available

   in a UCSP™ Package

♦ For Low-Cost Applications

   MAX221E: ±15kV ESD-Protected, +5V, 1µA,

   Single RS-232 Transceiver with AutoShutdown™



Applications

  Portable Computers

  Low-Power Modems

  Interface Translation

  Battery-Powered RS-232 Systems

  Multidrop RS-232 Networks

MAX223CAI中文资料参数规格
技术参数

供电电流 15 mA

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

封装 SSOP-28

外形尺寸

长度 10.33 mm

宽度 5.38 mm

高度 1.78 mm

封装 SSOP-28

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

MAX223CAI引脚图与封装图
MAX223CAI引脚图

MAX223CAI引脚图

MAX223CAI封装图

MAX223CAI封装图

MAX223CAI封装焊盘图

MAX223CAI封装焊盘图

在线购买MAX223CAI
型号 制造商 描述 购买
MAX223CAI Maxim Integrated 美信 \+ 5V供电,多通道RS - 232驱动器/接收器 +5V-Powered, Multichannel RS-232 Drivers/Receivers 搜索库存
替代型号MAX223CAI
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: MAX223CAI

品牌: Maxim Integrated 美信

封装: SSOP-28

当前型号

\+ 5V供电,多通道RS - 232驱动器/接收器 +5V-Powered, Multichannel RS-232 Drivers/Receivers

当前型号

型号: MAX223CAI+

品牌: 美信

封装: SSOP

完全替代

收发器 250Kbps

MAX223CAI和MAX223CAI+的区别
