MAX3083ECSD+

MAXIM INTEGRATED PRODUCTS  MAX3083ECSD+  芯片, RS422/RS485 收发器, 500KBPS, 5.25V, NSOIC

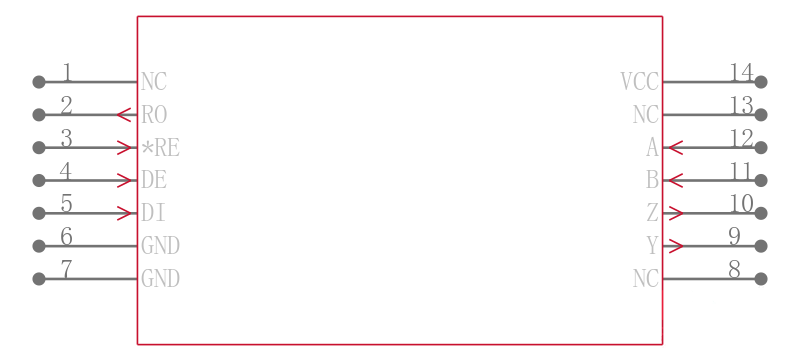

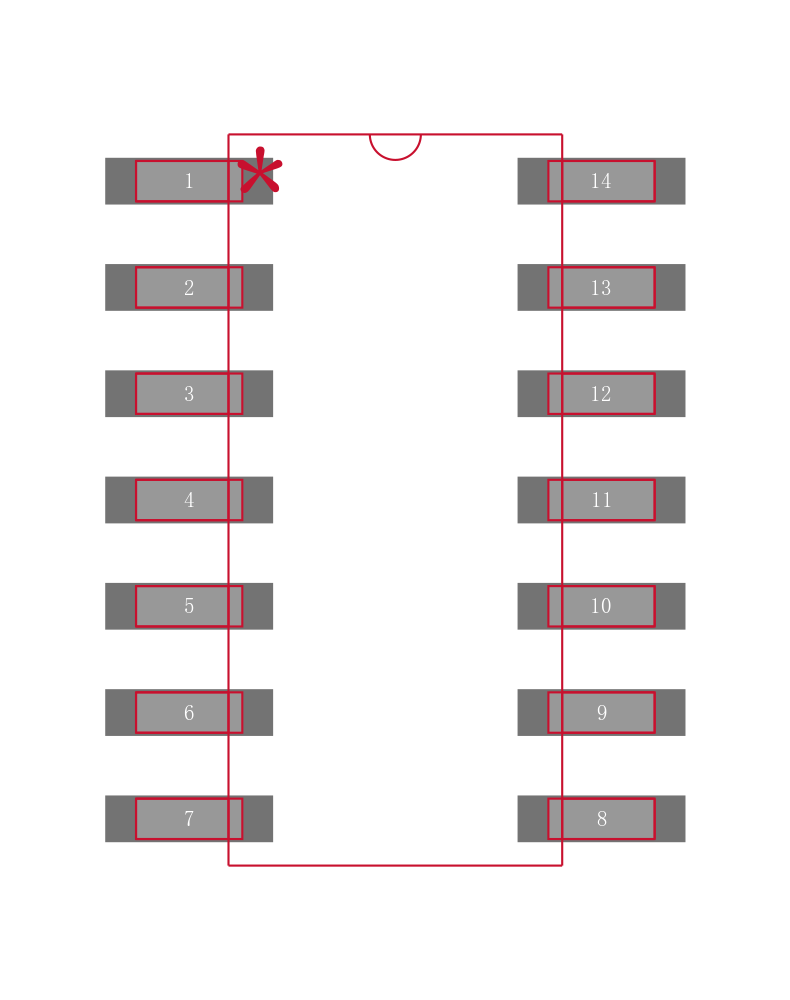

The is a ±15KV ESD protected, fail-safe, slew rate limited RS485/RS422 transceiver in 14 pin NSOIC package. It contains one driver and one receiver. The device features fail-safe circuitry which has a logic high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be logic high if all transmitters on a terminated bus are disabled high impedance. MAX3083ECSD+ offers higher driver output slew rate limits allowing transmit speeds up to 500Kbps. The transmitter output and receiver input is protected by ±15KV using human body model with enhanced ESD protection. This transceiver typically draws 375µA of supply current when unloaded or when fully loaded with the drivers disabled. It has a 1/8 unit load receiver input impedance that allows up to 256 transceivers on the bus.

.

Supply voltage range from 4.75V to 5.25V

.

Operating temperature range from 0°C to 70°C

.

Intended for full duplex communication

.

True fail-safe receiver while maintaining EIA/TIA485 compatibility

.

1nA low current shutdown mode

.

Features receiver/driver enable function
