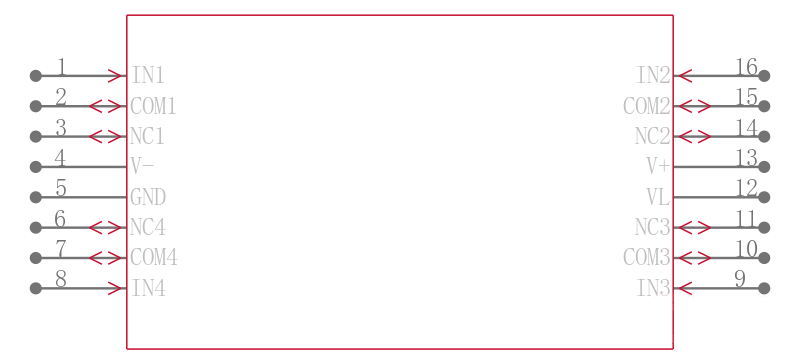

MAX351ESE

精密，四路， SPST模拟开关 Precision, Quad, SPST Analog Switches

General Description

The MAX351/MAX352/MAX353 are precision, quad, single-pole single-throw SPST analog switches. The MAX351 has four normally closed NC, and the MAX352 has four normally open NO switches. The MAX353 has two NO and two NC switches. All three parts offer low on resistance less than 35Ω, guaranteed to match within 2Ω between channels and to remain flat over the analog signal range ∆3Ω max. They also offer low leakage less than 250pA at +25°C and less than 6nA at +85°C and fast switching turn-on time less than 175ns and turn-off time less than 145ns.

Features

♦ Low On Resistance < 22Ω Typical 35Ω Max

♦ Guaranteed Matched On Resistance Between Channels < 2Ω

♦ Guaranteed Flat On Resistance Over Analog Signal Range ∆3Ω Max

♦ Guaranteed Charge Injection < 10pC

♦ Guaranteed Off-Channel Leakage < 6nA at +85°C

♦ ESD Guaranteed > 2000V per Method 3015.7

♦ Single-Supply Operation +10V to +30V

  Bipolar-Supply Operation ±4.5V to ±20V

♦ TTL-/CMOS-Logic Compatibility

♦ Rail-to-Rail Analog Signal Handling Capability

Applications

  Sample-and-Hold Circuits

  Military Radios

  Guidance and Control Systems

  Communications Systems

  Heads-Up Displays

  Battery-Operated Systems

  Test Equipment

  PBX, PABX
