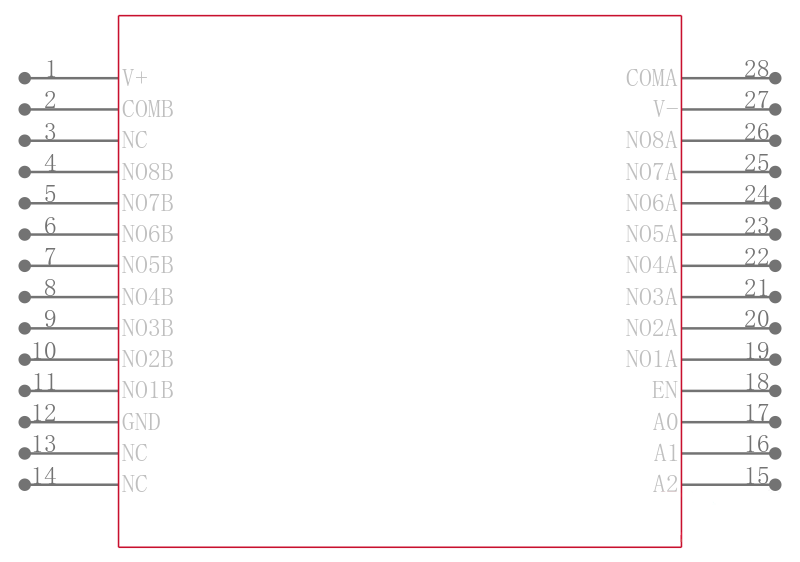

MAX307CPI
数据手册.pdf高精度， 16通道/双8通道，高性能， CMOS模拟多路复用器 Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers
General Description
The MAX306/MAX307 precision, monolithic, CMOS analog multiplexers muxes offer low on-resistance less than 100Ω, which is matched to within 5Ω between channels and remains flat over the specified analog signal range 7Ω, max. They also offer low leak age over temperature INOOFFless than 2.5nA at +85°C and fast switching speeds tTRANSless than 250ns. The MAX306 is a single-ended 1-of-16 device, and the MAX307 is a differential 2-of-8 device.
Features
♦Guaranteed On-Resistance Match Between Channels, <5ΩMax
♦Low On-Resistance, <100ΩMax
♦Guaranteed Flat On-Resistance over Specified Signal Range, 7ΩMax
♦Guaranteed Charge Injection, <10pC
♦INOOFFLeakage <2.5nA at +85°C
♦ICOMOFFLeakage <20nA at +85°C
♦ESD Protection >2000V
♦Plug-In Upgrade for Industry-Standard DG406/DG407/DG506A/DG507A
♦Single-Supply Operation +5V to +30V
Bipolar-Supply Operation ±4.5V to ±20V
♦Low Power Consumption, <1.25mW
♦Rail-to-Rail Signal Handling
♦TTL/CMOS-Logic Compatible
Applications
Sample-and-Hold
Circuits
Test Equipment
Heads-Up Displays
Guidance and Control Systems
Military Radios
Communications Systems
Battery-Operated Systems
PBX, PABX
Audio Signal Routing
