MAX337EWI+
数据手册.pdfMaxim Integrated(美信)
电子元器件分类

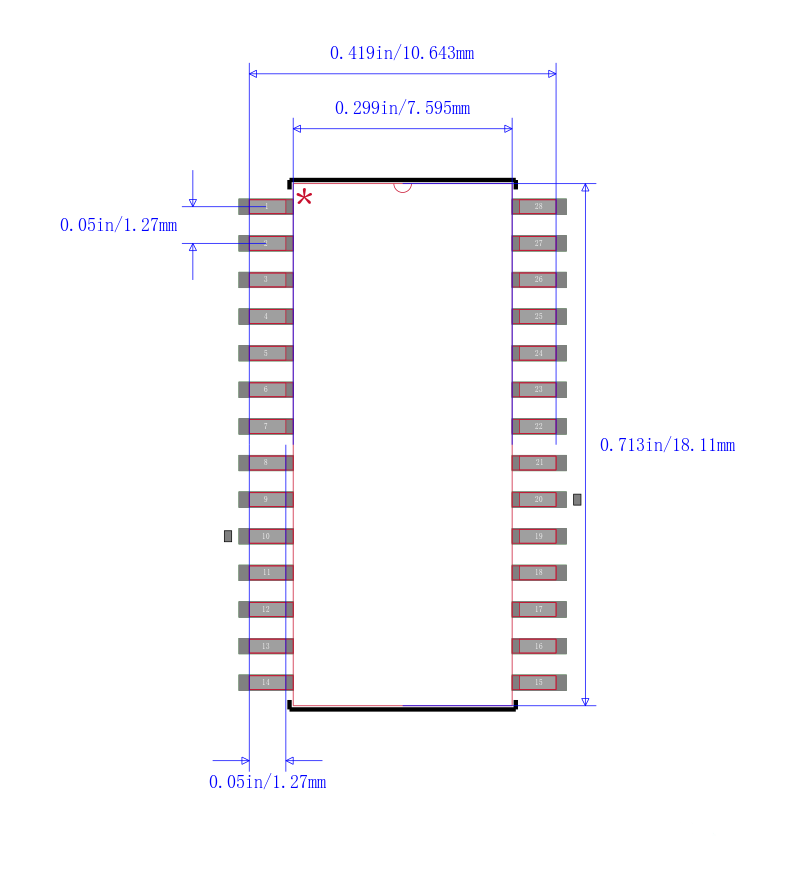

模拟多路复用器/解复用器, 8:1, 2电路, 400 ohm, ±4.5V至±20V电源, WSOIC-28

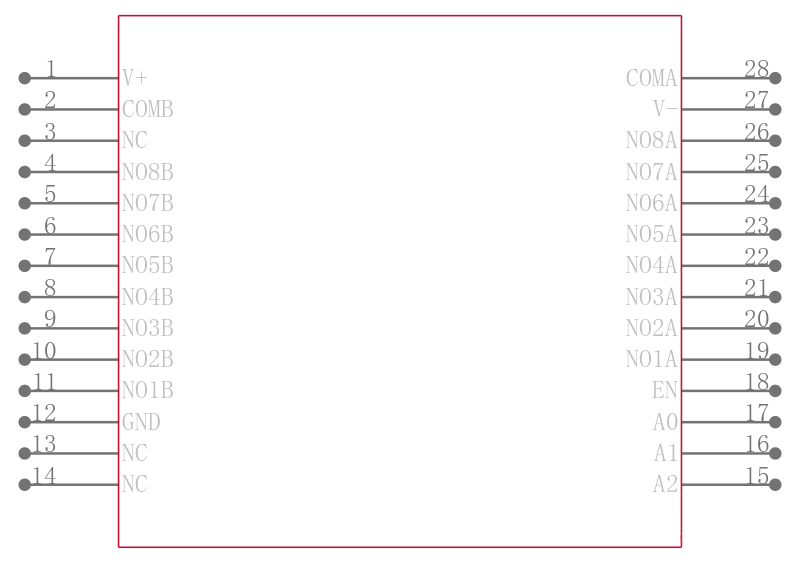

The from Products is a dual 8 channel, low leakage, CMOS analogue multiplexer in 28 pin WSOIC package. This monolithic CMOS analogue multiplexer is designed to connect one of 8 inputs to a common output by control of a 3bit binary address. It can be used as either a mux or a demux and offers electrostatic discharge ESD protection greater than 2000V, per method 3015.7. It is used in precision data acquisition, precision signal routing and test equipment.
- .
- Supply voltage range is 4.5V to 30V, ±4.5V to ±20V
- .
- Operating temperature range from -40°C to +85°C
- .
- Maximum RON is 700 ohm at TA = +25°C single supply
- .
- Maximum transition time is 600ns at TA = +25°C single supply
- .
- Maximum on-resistance matching is 10 ohm at TA = +25°C dual supply
- .
- Maximum no-off leakage current is 20pA at TA = +25°C dual supply
- .
- Charge injection of 3.5pC typ
- .
- Plug-in upgrade for industry standard DG507
- .
- Bidirectional Rail to rail signal handling
- .
- TTL/CMOS logic compatible
