MAX4526ESA+
数据手册.pdfMaxim Integrated(美信)
主动器件
MAXIM INTEGRATED PRODUCTS MAX4526ESA+ 模拟开关, 反相, SPDT, 2 放大器, 175 ohm, 4.5V至36V, ± 4.5V至± 18V, NSOIC, 8 引脚

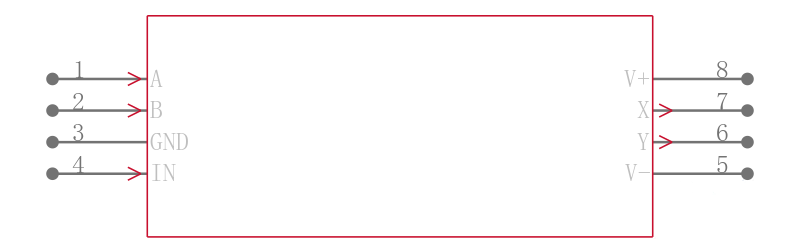

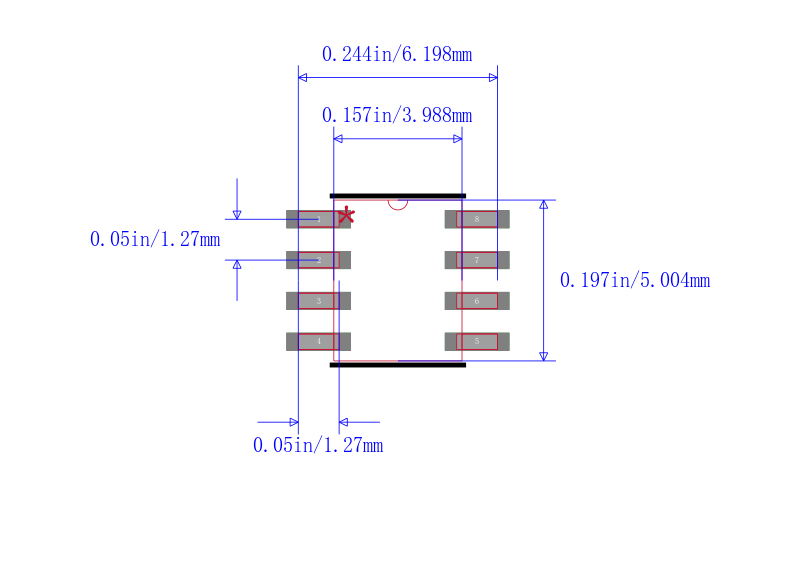

The is a phase reversal analogue switch in 8 pin NSOIC package. This device consists of two normally open and two normally closed CMOS analogue switches arranged in a bridge configuration which operate in single supply or dual supplies. A logic level signal controls whether the input signal is routed through normally or inverted. A low resistance DC path goes from inputs to outputs at all times, yet isolation between the two signal paths is excellent. It is optimized for high-frequency operation such as chopper amplifiers and it has a higher speed, logic level translator and switch driver.
- .
- Supply voltage range is 4.5V to 36V, ±4.5V to ±18V
- .
- Operating temperature range from -40°C to 85°C
- .
- Maximum charge injection is 10pC, maximum charge injection match is 2pC
- .
- Signal paths with ±15V supplies is 175ohm at TA = +25°C
- .
- Break before make time delay of 5ns
- .
- Rail to rail signal handling
- .
- Transition time < 100ns with ±15V supplies
- .
- ESD protection per method 3015.7 is >2KV
- .
- TTL/CMOS compatible inputs
