MAX4701ETE+

MAXIM INTEGRATED PRODUCTS  MAX4701ETE+  模拟开关, 低电压, DPDT, 2 放大器, 75 ohm, 1.8V 至 5.5V, TQFN, 16 引脚

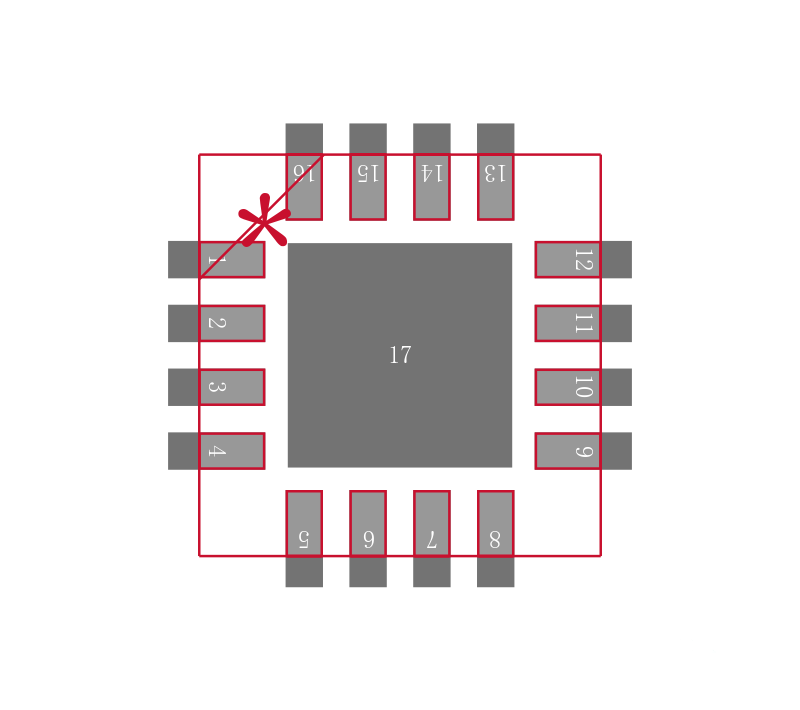

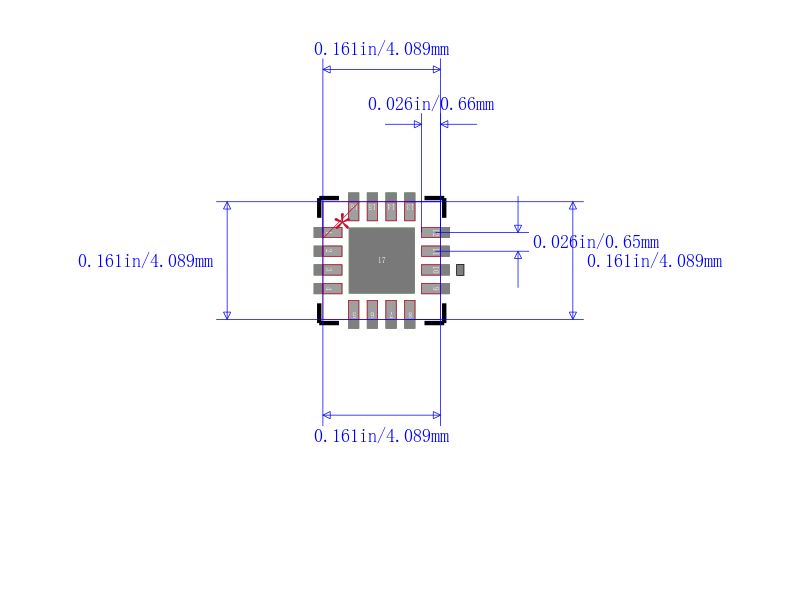

The is a low voltage, dual DPDT analogue switch in 16 pin TQFN package. The dual double-pole/double-throw DPDT switches with two control inputs that control two single-pole/double-throw SPDT switches each. The device operates from a single +1.8V to +5.5V power supply. When powered from a +2.7V supply the device offer a 75ohm on-resistance RON with 12ohm max RON flatness and 4ohm max matching between channels. Each switch has rail to rail signal handling, fast switching speeds of tON = 35ns, tOFF = 20ns and a maximum 1nA of leakage current. The MAX4701 digital inputs are 1.8V logic compatible when operated from a +3V supply. Typical applications include audio and video signal routing, cellular phones, battery operated equipment and modems.

.

Break before make switching

.

Operating temperature range from -40°C to 85°C

.

On channel -3dB bandwidth is 250MHz

.

Low crosstalk is-79dB 1MHz

.

High off isolation is -76dB 1MHz
