MSP430F1101IDW

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER

description

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6µs.

Low Supply Voltage Range 1.8 V to 3.6 V

Ultralow-Power Consumption

  − Active Mode: 160 µA at 1 MHz, 2.2 V

  − Standby Mode: 0.7 µA

  − Off Mode RAM Retention: 0.1 µA

Wake-Up From Standby Mode in less than 6 µs

16-Bit RISC Architecture, 125 ns Instruction Cycle Time

Basic Clock Module Configurations:

  − Various Internal Resistors

  − Single External Resistor

  − 32-kHz Crystal

  − High-Frequency Crystal

  − Resonator

  − External Clock Source

16-Bit Timer_A With Three Capture/Compare Registers

On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion

Serial Onboard Programming,  No External Programming Voltage Needed Programmable Code Protection by Security Fuse

Family Members Include:

  MSP430C1101: 1KB ROM, 128B RAM

  MSP430C1111: 2KB ROM, 128B RAM

  MSP430C1121: 4KB ROM, 256B RAM

  MSP430F1101A: 1KB + 128B Flash Memory 128B RAM

MSP430F1111A: 2KB + 256B Flash Memory 128B RAM

MSP430F1121A: 4KB + 256B Flash Memory 256B RAM

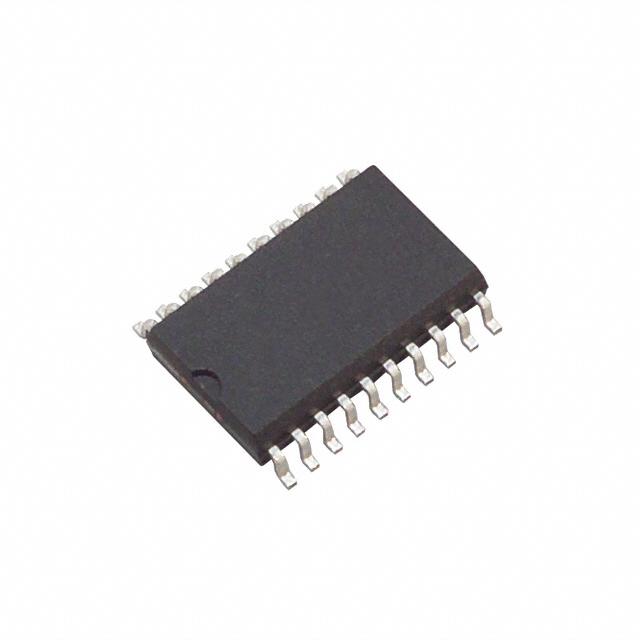

Available in a 20-Pin Plastic Small-Outline Wide Body SOWB Package, 20-Pin Plastic Small-Outline Thin Package, 20-Pin TVSOP F11x1A only and 24-Pin QFN

For Complete Module Descriptions, Refer to the MSP430x1xx Family User’s Guide, Literature Number SLAU049
