MCP1824T-3302E/DC
数据手册.pdfMICROCHIP MCP1824T-3302E/DC 固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 3.3V输出, 300mA输出, SOT-223-5

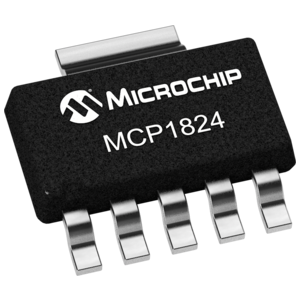

MCP1824 低压降电压稳压器
### LDO(低压降)线性稳压器,
得捷:
IC REG LIN 3.3V 300MA SOT223-5
立创商城:
MCP1824T-3302E/DC
欧时:
Microchip MCP1824T-3302E/DC LDO 稳压器, 3.3 V输出, 300mA最大输出, ±2.5%精确度, 2.1 → 6 V输入
e络盟:
MICROCHIP MCP1824T-3302E/DC 固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 3.3V输出, 300mA输出, SOT-223-5
艾睿:
Stable power is ideal for better processing this LDO MCP1824T-3302E/DC linear regulator developed by Microchip Technology will help do so. Its typical dropout voltage at current is 0.2@300mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. By only needing an input voltage of 2.1 V with a maximum of 6 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 0.5%Typ and line regulation of 0.05%/VTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.32@300mA V.
Allied Electronics:
LDO Regulator 300mA 3.3V SHDN SOT223-5
富昌:
MCP1824 系列 300 mA 3.3 V 低静态电流 LDO 稳压器 - SOT-223-5
TME:
Voltage regulator; LDO, fixed; 3.3V; 0.3A; SOT223-5; SMD; ±0.4%
Newark:
# MICROCHIP MCP1824T-3302E/DC Fixed LDO Voltage Regulator, 2.1V to 6V, 200mV Dropout, 3.3Vout, 300mAout, SOT-223-5
