MAX16909RAUE/V+

MAXIM INTEGRATED PRODUCTS  MAX16909RAUE/V+  直流-直流-开关同步降压稳压器, 可调, 3.5V-36V输入, 1V-10V/3A输出, 1 MHz, TSSOP-16

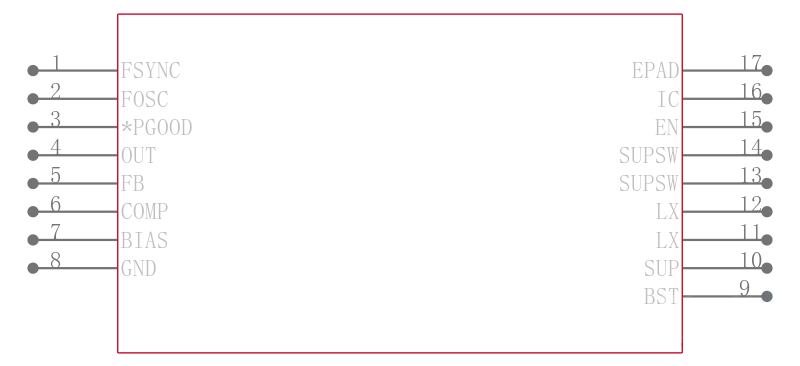

The is a 220KHz to 1MHz step down converter with low operating current in 16 pin TSSOP package. It is an current mode, step-down converter with an integrated high side switch. The device is designed to operate with input voltages from 3.5V to 36V while using only 30µA quiescent current at no load. The switching frequency is adjustable from 220KHz to 1MHz by an external resistor and can be synchronized to an external clock. The output voltage is pin selectable to be 5V fixed or adjustable from 1V to 10V. It has wide input voltage range along with its ability to operate at high duty cycle during undervoltage transients. The device operates in skip mode for reduced current consumption in light load applications. Internal protection includes overcurrent limit, overvoltage and thermal shutdown with automatic recovery. The device also has power good monitor to ease power supply sequencing.

.

Automotive grade AEC-Q100 qualified

.

Automotive temperature range from -40°C to 125°C

.

42V input transients tolerance

.

Maximum duty cycle of 98% at fSW = 1MHz and 99% at fSW = 220KHz

.

Integrated 3A internal high side 70mohm switch

.

Fast load transient response and current mode architecture

.

Frequency synchronization input

.

Standby mode operating current of 30µA and shutdown current of 5µA

.

Load regulation of 0.5% and line regulation of 0.02%/V
