MAX1744AUB+

MAXIM INTEGRATED PRODUCTS  MAX1744AUB+  芯片, 降压直流/直流控制器, 高电压

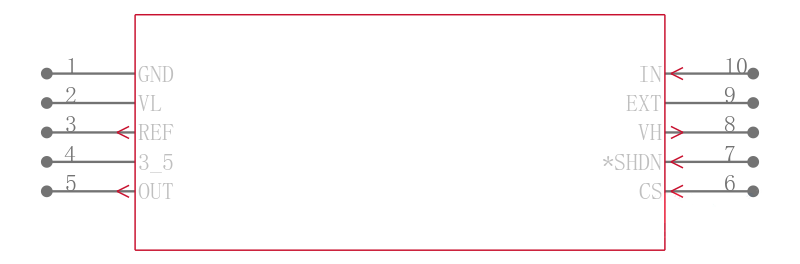

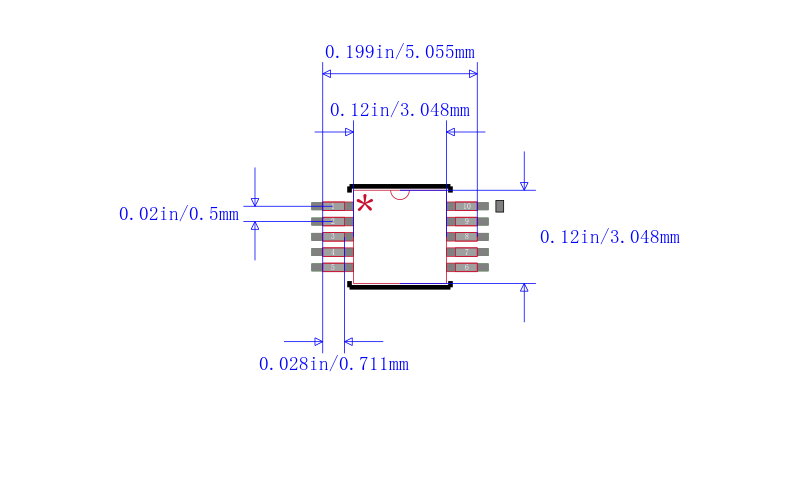

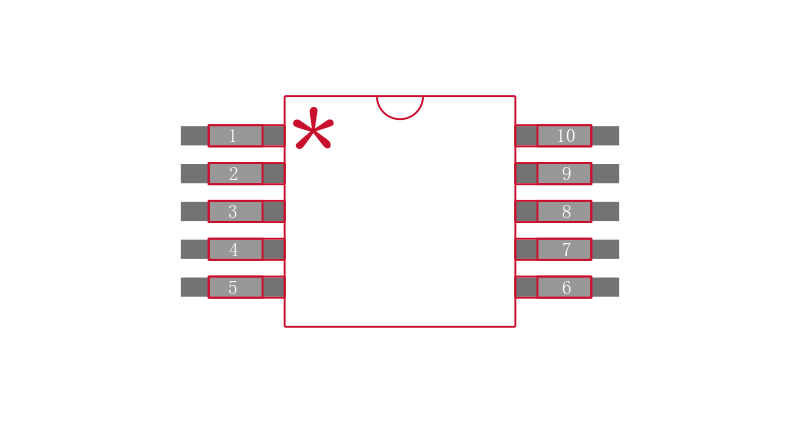

The is a high voltage, step down DC to DC controller in 10 pin µMAX package. The step down DC to DC controller capable of handling up to 36V inputs. It use a current-limited control scheme for excellent light and full-load efficiency while the 330KHz max switching frequency permits small external components for space-critical applications. Operation to 100% duty cycle permits the lowest possible dropout voltage. The MAX1744 contains an internal feedback network that provides a pin-selectable output voltage of either 3.3V or 5V.

.

Supply voltage range is 4.5V to 36V

.

Operating temperature range from -40°C to 125°C

.

Quiescent current is 90µA

.

Shutdown current is 4µA

.

Output power capability exceeds 50W

.

Low dropout voltage

.

Efficiency is greater than 90%
