MAX6898AALT+T
数据手册.pdfMaxim Integrated(美信)
主动器件
超小尺寸,可调节排序/监控电路 Ultra-Small, Adjustable Sequencing/Supervisory Circuits

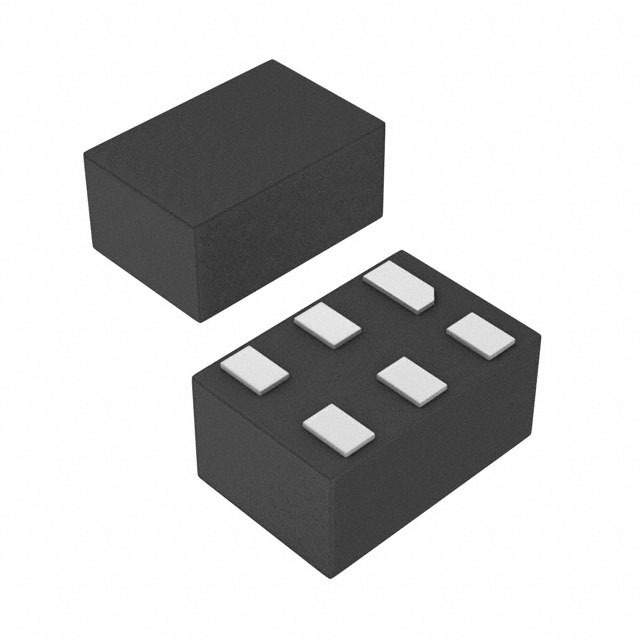

The from Products is an ultra-small, adjustable sequencing/supervisory circuit in 6 pin µDFN package. This is low power, voltage monitoring circuit with sequencing capability. The miniature device offers tremendous flexibility with an adjustable threshold capable of monitoring down to 0.5V and an external capacitor-adjustable time delay. It is ideal for use in power supply sequencing, reset sequencing and power switching applications. Multiple devices can be cascaded for complex sequencing applications. Ideally used at automotive, medical equipment, intelligent instruments, portable equipment, computers/servers, critical µP monitoring, set-top boxes and telecom.
- .
- Operate from VCC of 1.5V to 5.5V
- .
- Operating temperature range from -40°C to +125°C
- .
- 1.8% accurate adjustable threshold over temperature
- .
- Low supply current of 10µA typ
- .
- Active-low enable pin
- .
- Active-low, open-drain output
- .
- Capacitor adjustable input IN delay, capacitor adjustable enable delay
- .
- Automotive; Computers/Servers; Critical µP Monitoring; Intelligent Instruments; Medical Equipment; Portable Equipment; Set-Top Boxes; Telecom
