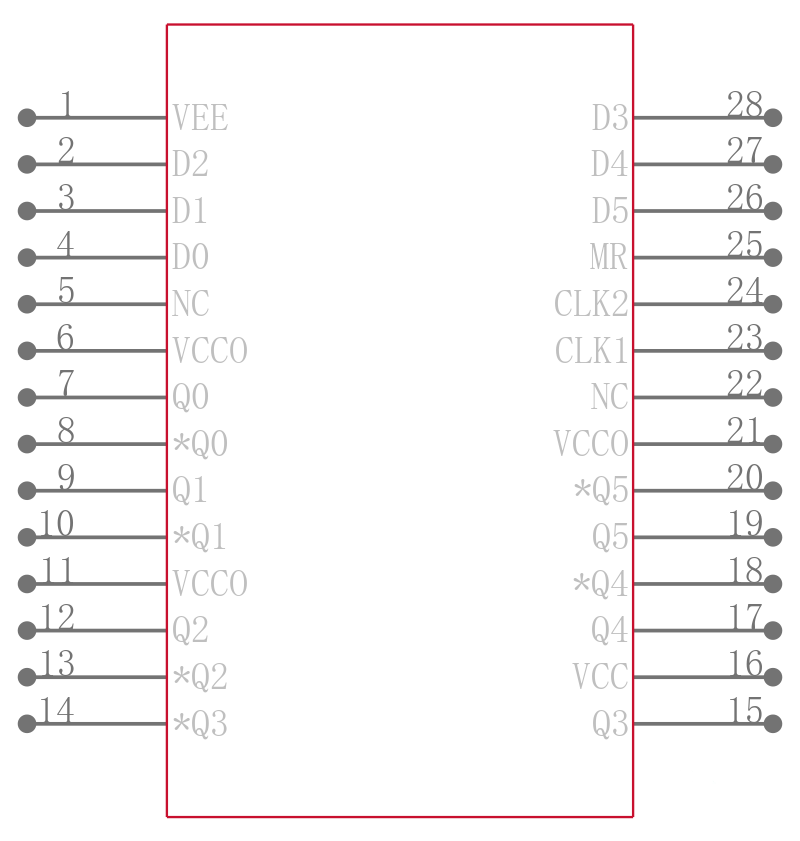

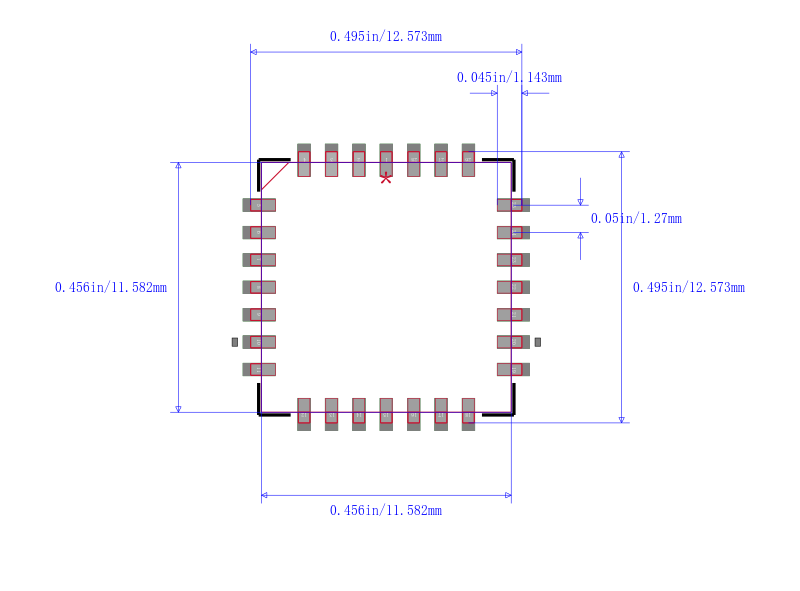

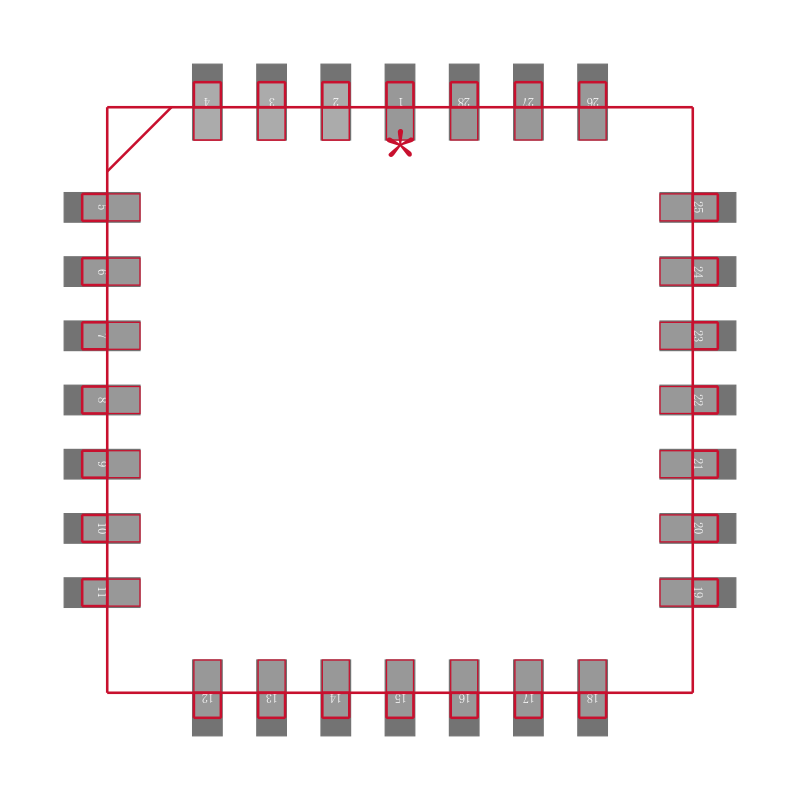

MC10E151FNG

5V ECL 6位D注册 5V ECL 6-Bit D Register

The MC10E/100E151 contains 6 D-type, edge-triggered, master-slave flip-flops with differential outputs. Data enters the master when both CLK1 and CLK2 are LOW, and is transferred to the slave when CLK1 or CLK2 or both go HIGH. The asynchronous Master Reset MR makes all Q outputs go LOW.The 100 Series contains temperature compensation.

Features

---

 |

.

1100MHz Min. Toggle Frequency

.

Differential Outputs

.

Asynchronous Master Reset

.

Dual Clocks

.

PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V

.

NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V

.

Internal Input Pulldown Resistors

.

ESD Protection: > 2 kV HBM, > 200 V MM

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 304 devices

.

Pb-Free Packages are Available
