MLP2012V1R0MT0S1

MLP2012V1R0MT0S1

数据手册.pdf
TDK(东电化) 被动器件

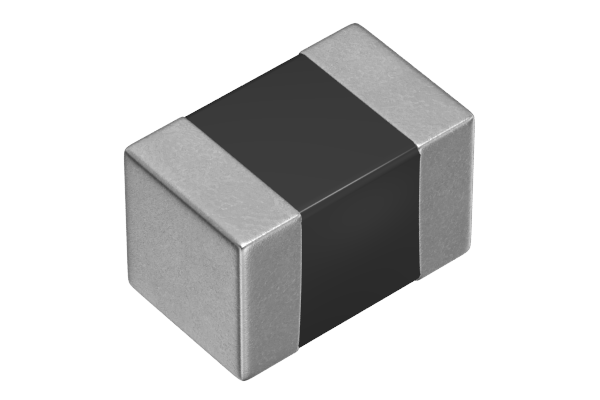

TDK 叠层电感 MLP2012V1R0MT0S1

1µH Shielded Multilayer Inductor 900mA 260mOhm Max 0805 2012 Metric


立创商城:
1uH ±20% 200mΩ


得捷:
FIXED IND 1UH 900MA 260 MOHM SMD


艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power MLP2012V1R0MT0S1 surface mount inductor from TDK is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with multi-layer technology. It has an inductance of 1u H. This product is 2.2 mm long, 1 mm tall and 1.45 mm deep. It has a tolerance of 20%. Its test frequency is 2M Hz. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 260m Ohm.


Verical:
Inductor Power Shielded Multi-Layer 1uH 20% 2MHz Ferrite 900mA 260mOhm DCR 0805 T/R


MLP2012V1R0MT0S1中文资料参数规格
技术参数

额定电流 900 mA

容差 ±20 %

电感 1 µH

产品系列 MLP

电感公差 ±20 %

测试频率 2 MHz

电阻DC) ≤260 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.26 Ω

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 1 mm

封装公制 2012

封装 0805

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

制造应用 Commercial Grade

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

MLP2012V1R0MT0S1引脚图与封装图
MLP2012V1R0MT0S1引脚图

MLP2012V1R0MT0S1引脚图

MLP2012V1R0MT0S1封装图

MLP2012V1R0MT0S1封装图

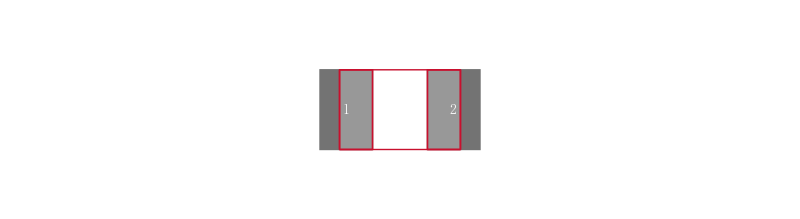

MLP2012V1R0MT0S1封装焊盘图

MLP2012V1R0MT0S1封装焊盘图
