MHQ1005P2N2ST000

固定电感器 IND 0402 2.2nH S-HQ SMD RF IND

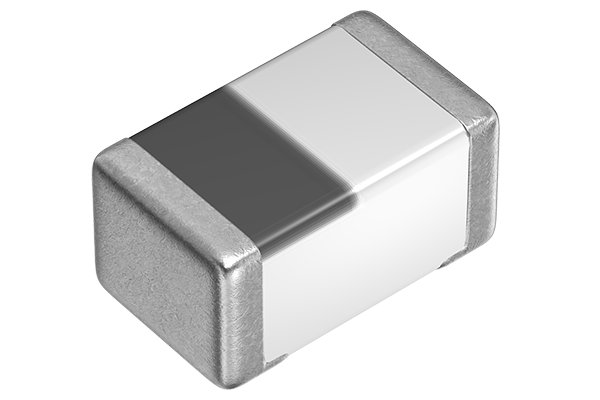

2.2nH Unshielded Multilayer Inductor 1A 60mOhm Max 0402 1005 Metric

得捷:
FIXED IND 2.2NH 1A 60 MOHM SMD

立创商城:
2.2nH ±0.3nH 40mΩ

贸泽:
固定电感器 IND 0402 2.2nH S-HQ SMD RF IND

艾睿:
This high frequency chip MHQ1005P2N2ST000 surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.05 mm long, 0.6 mm tall and 0.65 mm deep. It has an inductance of 2.2n H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 60m Ohm. This device utilizes multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 8G Hz.

安富利:
MHQ1005P2N2ST000

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0022uH 0.3nH 100MHz 23Q-Factor Ceramic 1A 0.06Ohm DCR 0402 T/R
