MSMLJ43CA
数据手册.pdfMicrosemi(美高森美)
分立器件

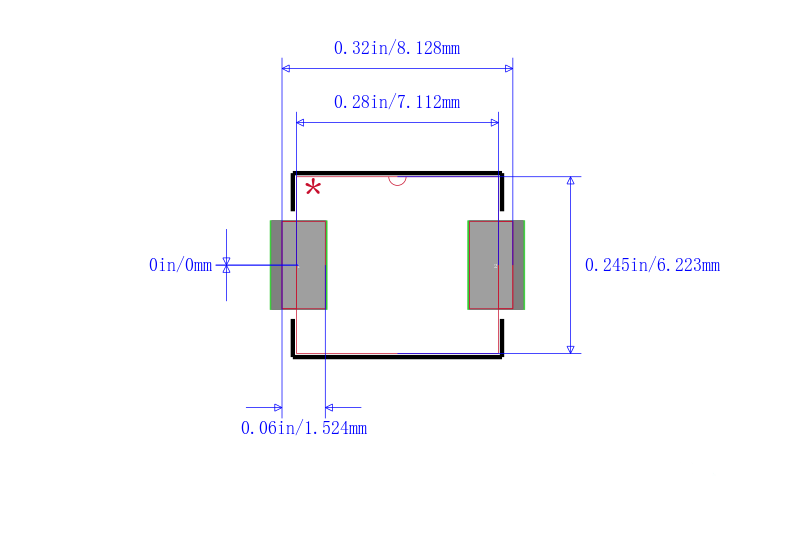

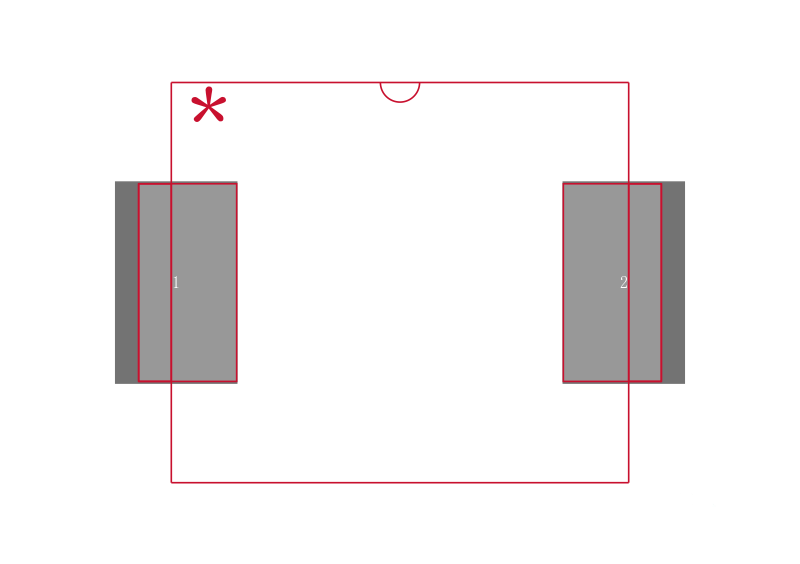

DO-214AB 43V 3000W
**SURFACE MOUNT, 3000 Watt, Transient Voltage Suppressor**
- .
- High Reliability controlled devices
- .
- Unidirectional and Bidirectional construction
- .
- Available in both J-bend and Gull-wing terminations
- .
- Selections for 5.0 to 170 V standoff voltages Vwm
贸泽:

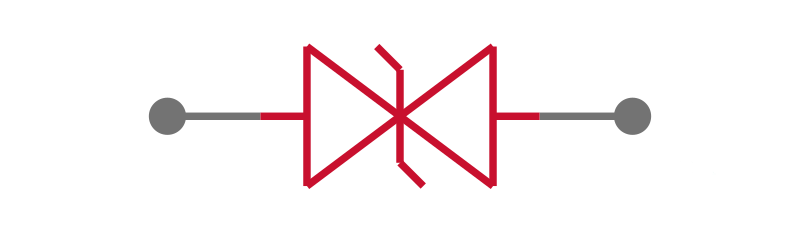

ESD Suppressors / TVS Diodes Bi-Directional TVS
艾睿:
Get protected with this MSMLJ43CA TVS diode manufactured from Microsemi. Its test current is 1 mA. This device&s;s maximum clamping voltage is 69.4 V and minimum breakdown voltage is 47.8 V. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 3000 W. This TVS diode has an operating temperature range of -65 °C to 150 °C.
Chip1Stop:
Diode TVS Single Bi-Dir 43V 3KW 2-Pin DO-214AB
Verical:
Diode TVS Single Bi-Dir 43V 3KW 2-Pin DO-214AB
