MAX4475AUT+T

MAXIM INTEGRATED PRODUCTS  MAX4475AUT+T  运算放大器, 轨至轨输出, 宽带, 10 MHz, 1个放大器, 3 V/µs, ± 1.35V 至 ± 2.75V, 2.7V 至 5.5V, SOT-23, 6 引脚

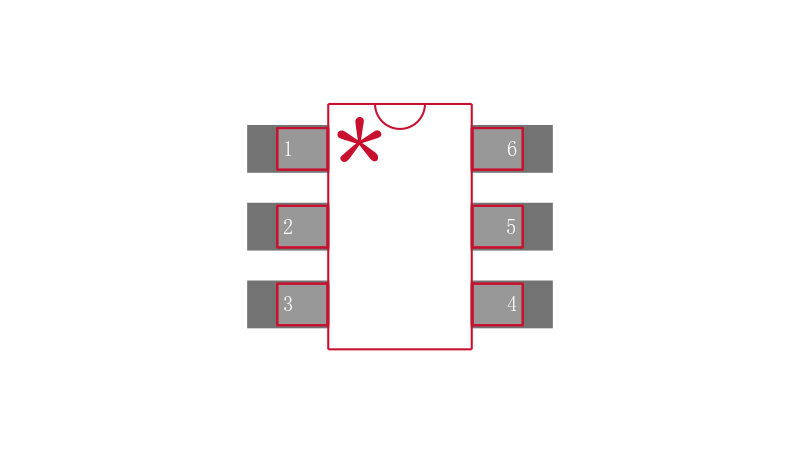

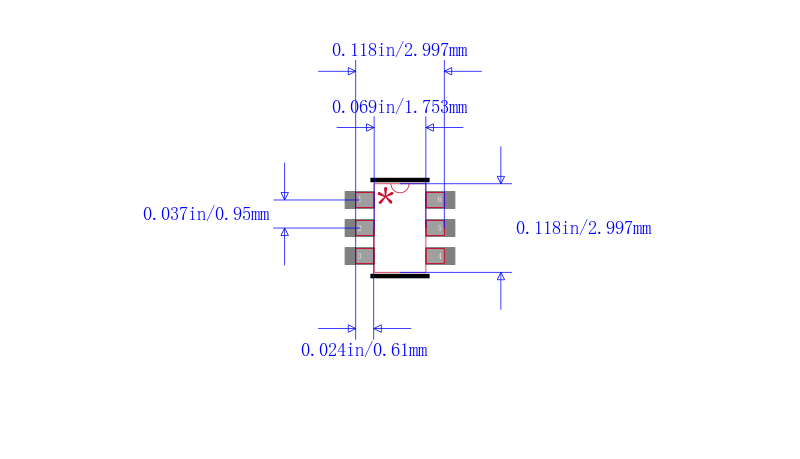

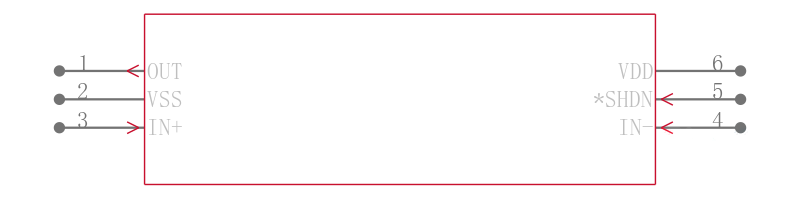

The is a low noise, low distortion, wide band, rail to rail operational amplifier op-amp in 6 pin SOT-23 package. This single op-amp with 10MHz gain bandwidth operate in single supply and draws 2.2mA of quiescent supply current per amplifier while featuring ultra low distortion of 0.0002% THD+N as well as low input voltage noise density of 4.5nV/√Hz and low input current-noise density of 0.5fA/√Hz. It offers s a low power shutdown mode that reduces supply current to 0.01µA and places the amplifier"s outputs into a high impedance state. This feature makes the device an ideal choice for applications that require low distortion and/or low noise.

.

Supply voltage range is ±1.35V to ±2.75V, 2.7V to 5.5V

.

Operating temperature range from -40°C to 125°C

.

Input common mode voltage range includes ground

.

Rail to rail output swings with a 1Kohm load

.

Unity gain stable

.

Excellent DC characteristics, input offset voltage is 70µV

.

Input bias current is 1pA and large signal voltage gain is 120dB
