MAX4375FESD

低成本，微功耗，高边电流检测放大器，比较器电压基准IC Low-Cost, Micropower, High-Side Current-Sense Amplifier Comparator Reference ICs

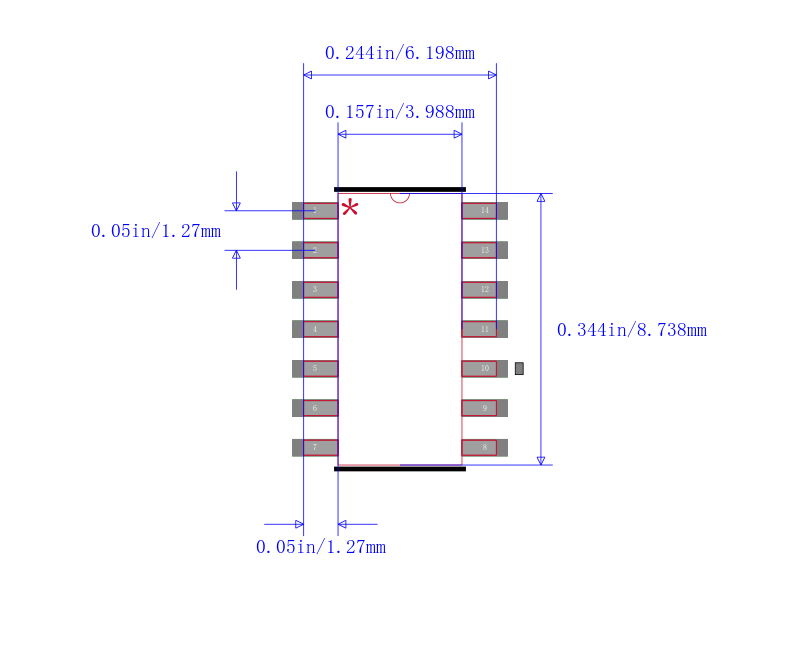

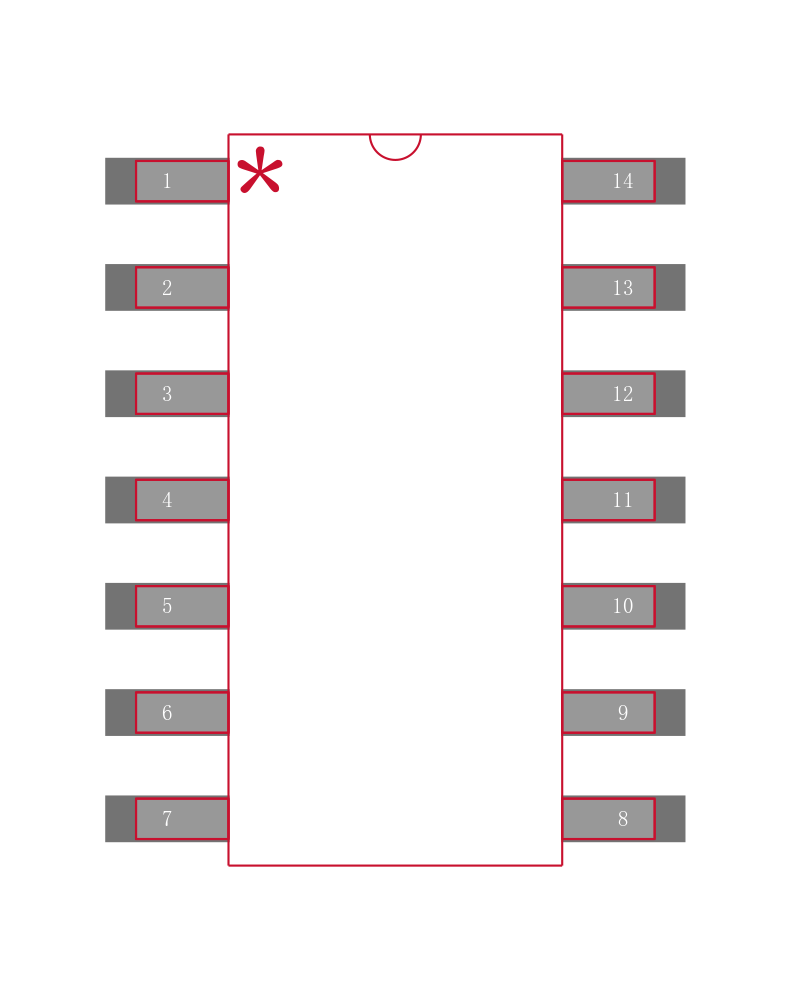

放大器，比较器，参考 IC 电流感测，电源管理 14-SOIC

得捷:
IC AMP COMP REF 14SOIC

安富利:
The MAX4373/MAX4374/MAX4375 low-cost, micropower, high-side current-sense supervisors contain a high-side current-sense amplifier, bandgap reference, and comparator with latching output. They feature a voltage output that eliminates the need for gain-setting resistors, making them ideal for today"s notebook computers, cell phones, and other systems where battery/DC current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems since it does not interfere with the ground path of the battery charger. The 0 to +28V input common-mode range is independent of the supply voltage, which ensures that the current-sense feedback remains viable even when connected to a battery pack in deep discharge.The comparator output of the MAX4373/MAX4374/ MAX4375 is latched to provide a turn-off flag that doesn"t oscillate. In addition, the MAX4374/MAX4375 contain a second comparator for use in window-detection functions. The MAX4373/MAX4374/MAX4375 are available in three different gain versions T = +20V/V,F = +50V/V, H = +100V/V and use an external sense resistor to set the sensitivity of the input voltage to the load current. These features offer a high level of integration, resulting in a simple and compact current-sense solution.The MAX4373/MAX4374/MAX4375 operate from a single +2.7V to +28V supply and consume 50µA. They are specified for the extended operating temperature range -40°C to +85°C and are available in 8-pin and 10-pin µMAX® packages.
