MAX3378EEBC+T

± 15kV ESD保护， 1μA ， 16Mbps的，双/四通道，低电压电平转换器，UCSP封装 【15kV ESD-Protected, 1レA, 16Mbps, Dual/Quad Low-Voltage Level Translators in UCSP

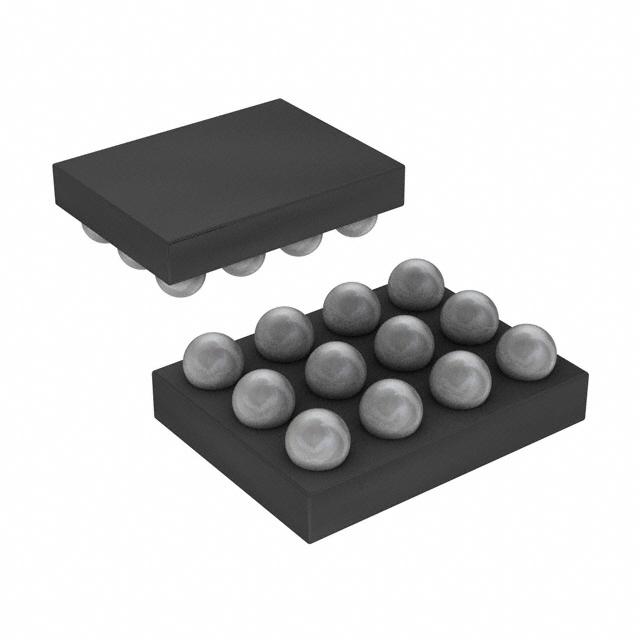

The from Products is a ±15KV ESD protected, 1µA quad channel low voltage level translator in 12 pin UCSP package. This ESD protected level translator provides the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages VCC and VL set the logic levels on either side of the device. A low voltage logic signal present on the VL side of the device appears as a high voltage logic signal on the VCC side of the device and vice-versa. It operate at a guaranteed data rate of 8Mbps over the entire specified operating voltage range. IT is typically used at SPI, MICROWIRE® and I2C level translation, low voltage ASIC level translation, smart card readers, cell-phone cradles, portable POS systems, portable communication devices, low-cost serial interfaces, cell phones, GPS and telecommunications equipment.

.

Operation down to +1.2V on VL and 1.2 to 5.5V VL, 1.65 to 5.5V VCC supply range

.

Operating temperature range from -40°C to 85°C

.

Channel to channel skew is 20ns

.

Bidirectional level translation

.

Four transmitters/four receivers

.

Ultra low 1µA supply current in three state output mode

.

Low quiescent current of 130µA

.

Thermal short circuit protection

.

Cell Phones; Cell-Phone Cradles; GPS; Low-Cost Serial Interfaces; Low-Voltage ASIC Level Translation; Portable Communication Devices;

.

Portable POS Systems; Smart Card Readers; SPI, MICROWIRE®, and I²C Level Translation; Telecommunications Equipment
