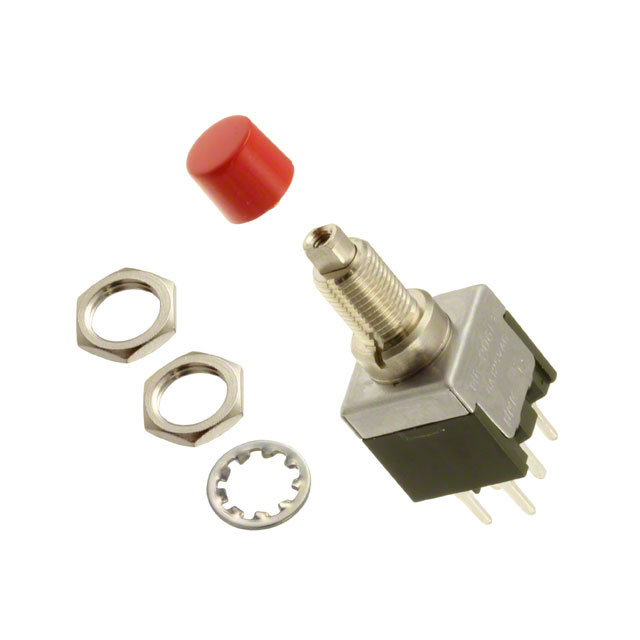

MB2061SS1W03/U-BC

Switch Push Button ON ON DPDT Round Plunger 6A 250VAC 30VDC Momentary Contact PC Pins Panel Mount/Through Hole

Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.

立创商城:
MB2061SS1W03/U-BC

得捷:
SWITCH PUSHBUTTON DPDT 6A 125V

贸泽:
Pushbutton Switches NKK PUSHBUTTON SW DPDT ONON PCB RED

艾睿:
Never worry about turning off components or cutting off certain sections of a circuit with this MB2061SS1W03/U-BC push button switch from NKK Switches. It has a DPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This push switch has an operating temperature range of -30 °C to 85 °C. The MB2061SS1W03/U-BC push switch has a PC pin termination style. This product is 13 mm long and 12.7 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION

Verical:
Switch Push Button ON ON DPDT Round Plunger 6A 250VAC 30VDC Momentary Contact Panel Mount/Through Hole PC Pins
